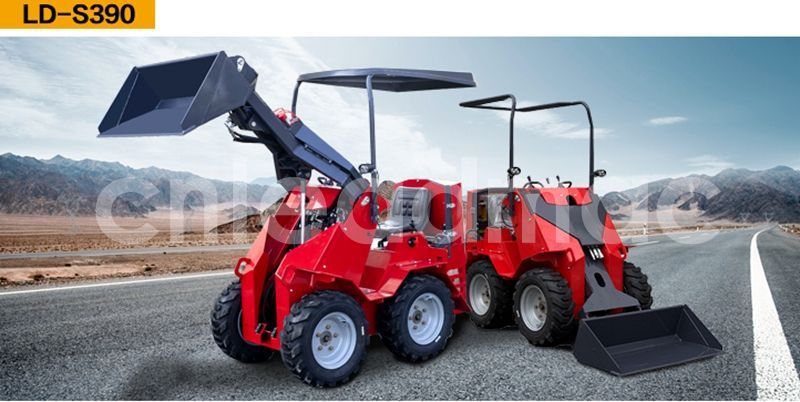

In the realm of construction machinery, efficiency and agility are paramount. Lead, driven by deep industry insights, is proud to introduce the LD - S390 Skid Steer Loader—an innovative machine designed around the philosophy of "small size, big performance." With versatile power options, precise operational specs, and user - centric details, the LD - S390 is engineered for complex job sites, delivering high - efficiency solutions for construction, agriculture, municipal maintenance, and beyond.

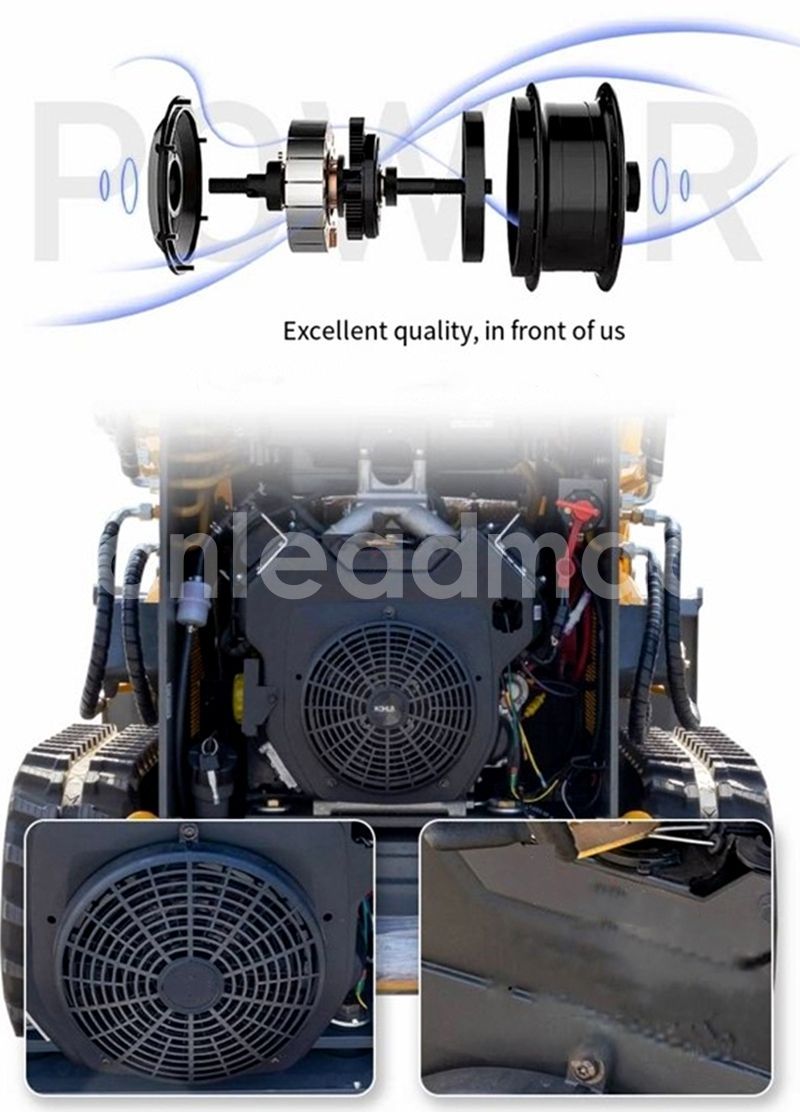

1. Engine System: Diverse and Robust

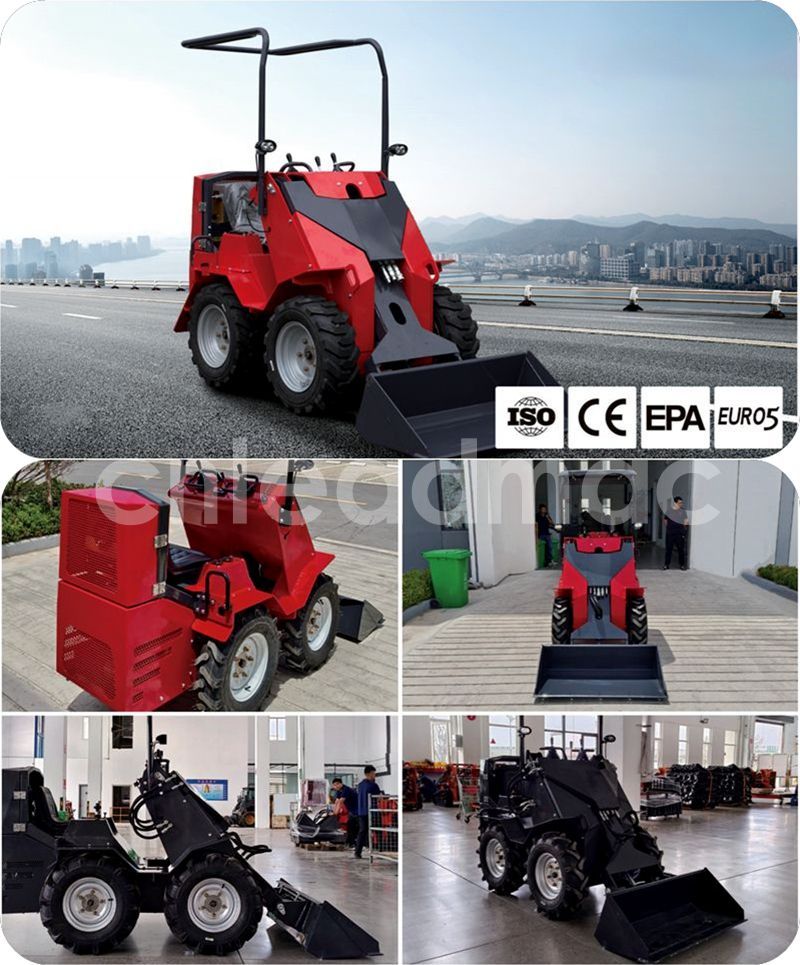

Featuring engine brands including Electric/koop/Runtong/Zhongcheng/B&S, the LD - S390 offers rated power ranging from 6kW, 72V, 125Ah (electric version) to 7.5/8.6/8.5/9.9kW (fuel models). The single - cylinder, naturally aspirated design complies with EPA/EURO5 emissions standards, blending raw power with environmental responsibility. Choose the zero - emission electric model for urban sensitivity or the fuel - powered variant for heavy - duty tasks—both ensure consistent, reliable performance.

2. Compact Design: Nimble and Adaptable

Standing at 1250mm in height and 960mm in width (with standard tires), the LD - S390 features a ultra - short 220mm tail length, 800mm wheelbase, 180mm ground clearance, and 1050kg operating weight. The standard bucket length is 2400mm, and the non - standard bucket length is 1900mm with a 1050mm width, allowing seamless navigation through tight alleys, indoor spaces, and greenhouses—areas where traditional machinery struggles. Maximize productivity without compromising on maneuverability.

3. High - Efficiency Precision Operation System: Ready for All Scenarios

The LD - S390 balances high - efficiency performance and precise control through its sophisticated parameter configuration:

Load Capacity: With a rated operating capacity of 200Kg, a maximum of 300Kg, and a 0.12m³ bucket volume paired with a 3.5kN maximum breakout force, it handles heavy loads such as gravel, soil, and material bins with ease.

Dynamic Performance: A 0 - 6km/h adjustable travel speed, 9s total cycle time, and 17bar system pressure ensure stable output during high - frequency operations, while the 5L fuel tank design balances endurance and space efficiency.

Operational Precision: A 2620mm maximum extension height, 2000mm bucket pin height, and 1830mm flat bucket height, combined with a 1470mm dump height and 600mm discharge distance, enable precise control over material handling trajectories. The 27° ground flip angle and 114° high - position flip angle adapt to different height requirements.
Rugged tires and a stable hydraulic system ensure smooth operation without shaking, even on uneven terrain, prioritizing both efficiency and safety.

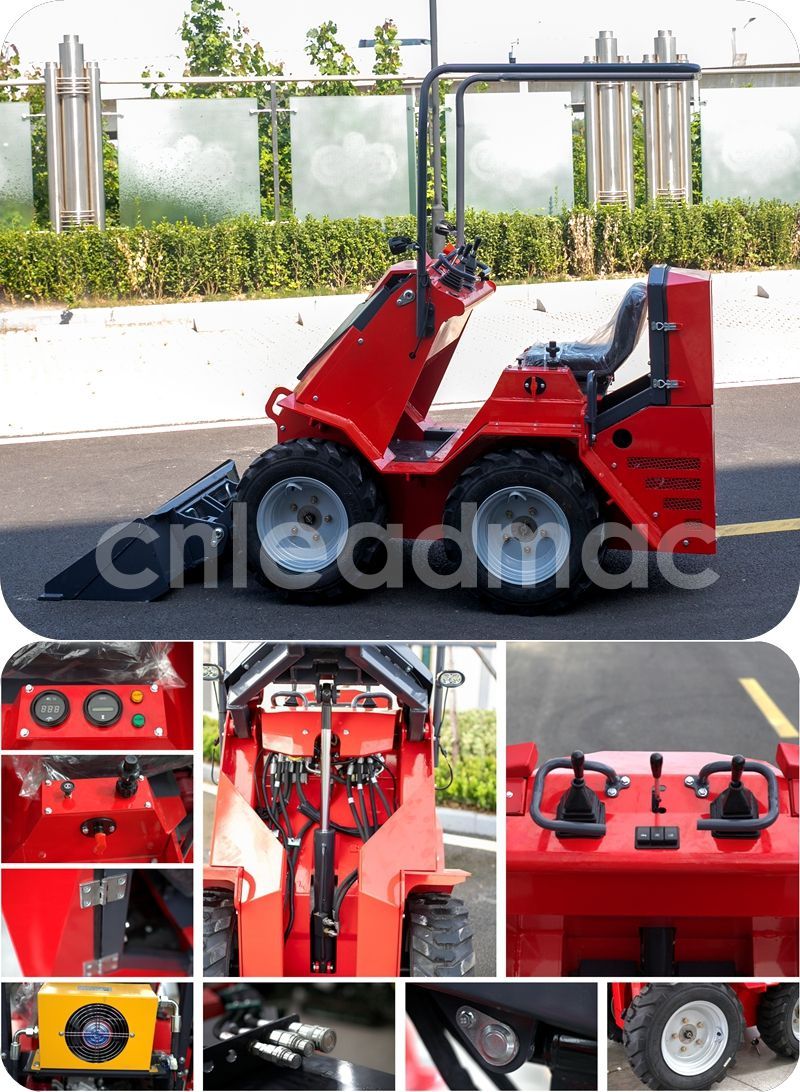

4. Open Ergonomic Design: Redefining Comfortable Operation

The open - style cockpit and control platform are optimized for user comfort and convenience:

Unobstructed Vision: The open driving space and compact body design enhance situational awareness during operation, minimizing blind spots and risks.

Intuitive Controls: Ergonomically positioned handles integrate key functions for easy access, reducing operator fatigue. The dashboard provides real - time displays of power status, operational parameters, and other information for quick decision - making.

Easy Access: The open structure allows for fast entry and exit, especially ideal for scenarios requiring frequent 工况切换 (work condition changes), further boosting productivity.

Unlock the Potential of LD - S390 Today!

Whether you need customized power configurations, industry - specific solutions, or a personalized quote, Lead’s expert team is here to assist.
