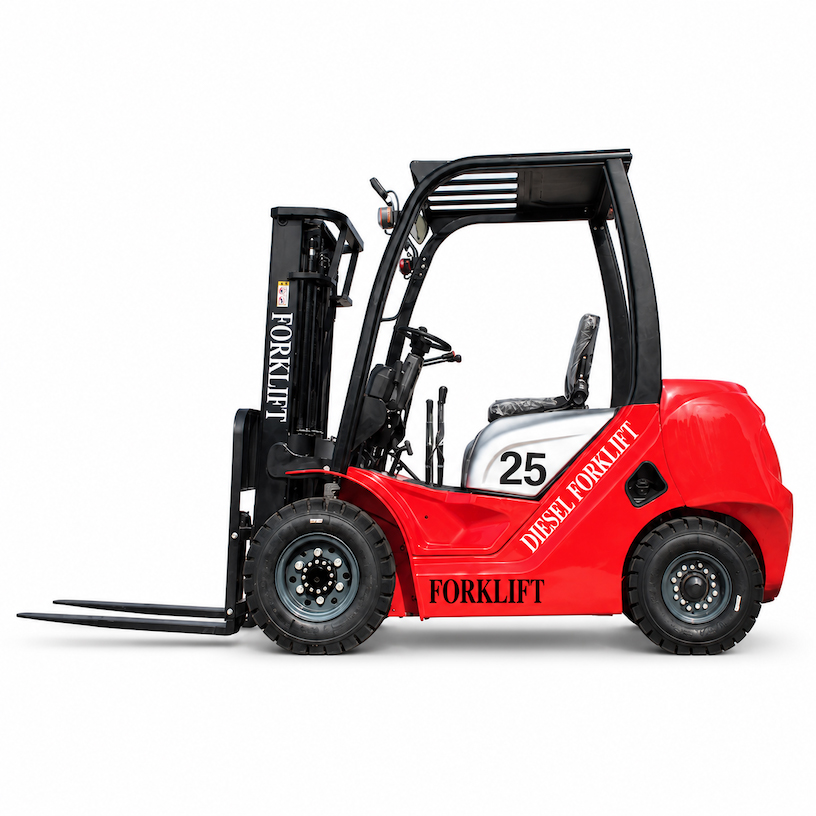

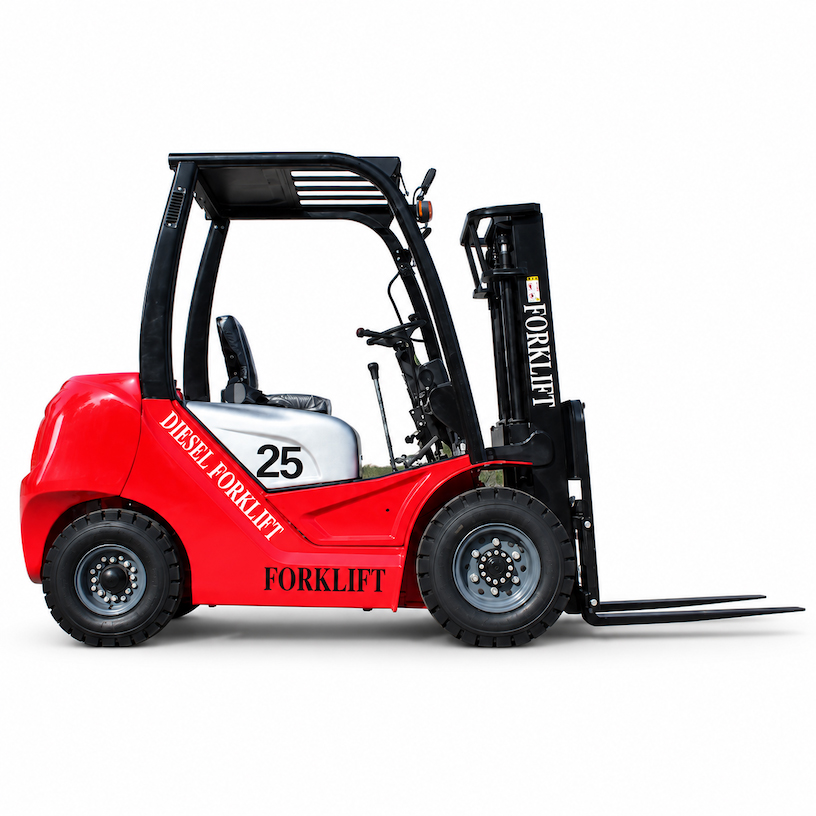

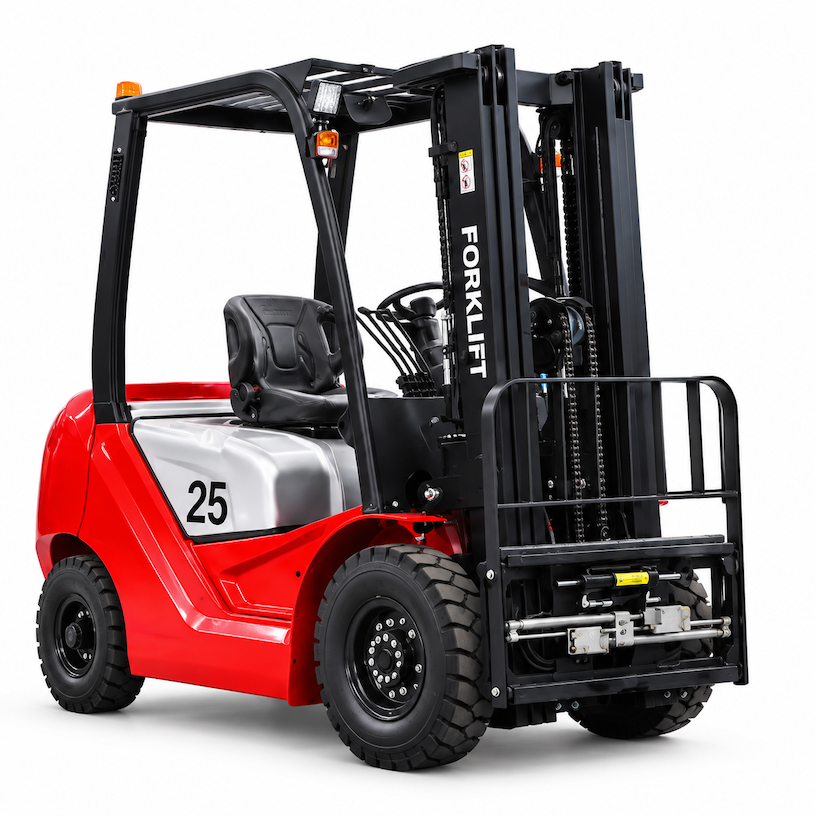

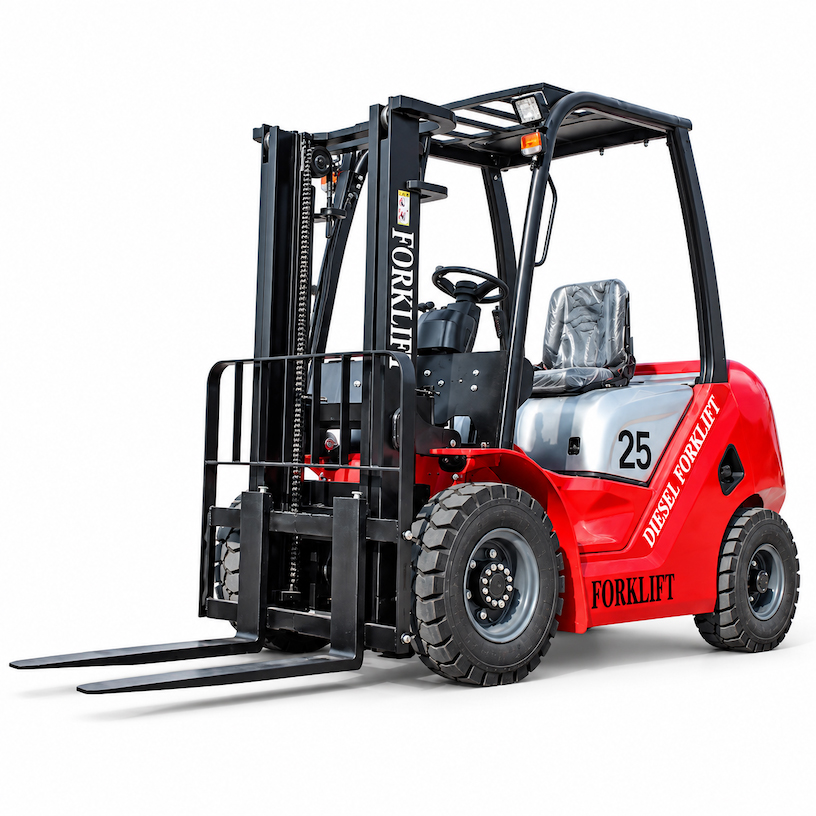

The LEAD K25/KII25 2.5 ton diesel forklift truck is designed for material handling in warehouses, manufacturing facilities, logistics centers, industrial yards, and other working environments. With a rated capacity of 2,500 kg and a 500 mm load center, this counterbalance forklift is suitable for handling compatible palletized goods, raw materials, and industrial products.
Xinchai Diesel Engine
The K25/KII25 is powered by a Xinchai QC490BPG diesel engine. According to the supplied specifications, the engine delivers a rated output of 39 kW at 2,650 rpm and maximum torque of 160 N·m at 1,980 rpm. This power configuration supports routine lifting, transportation, loading, and unloading operations.
Practical Lifting Performance

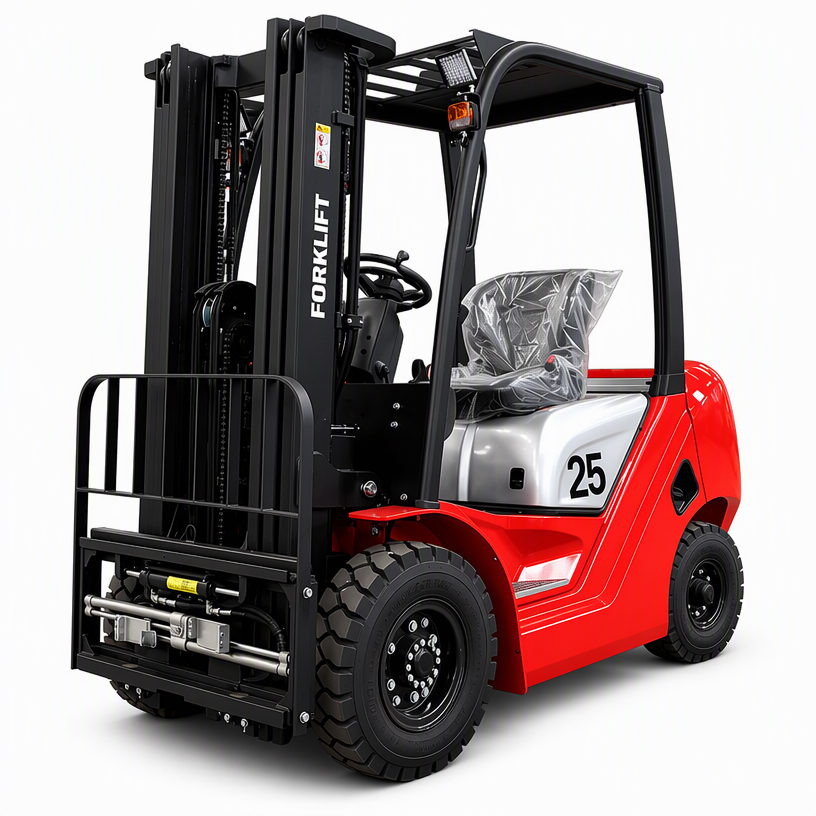

The forklift has a standard lifting height of 3,000 mm and a free lift height of 130 mm. Its listed laden lifting speed is 540 mm/s, and its maximum gradeability under load is 20%. These specifications help buyers assess its suitability for their material handling requirements.
Functional Counterbalance Design

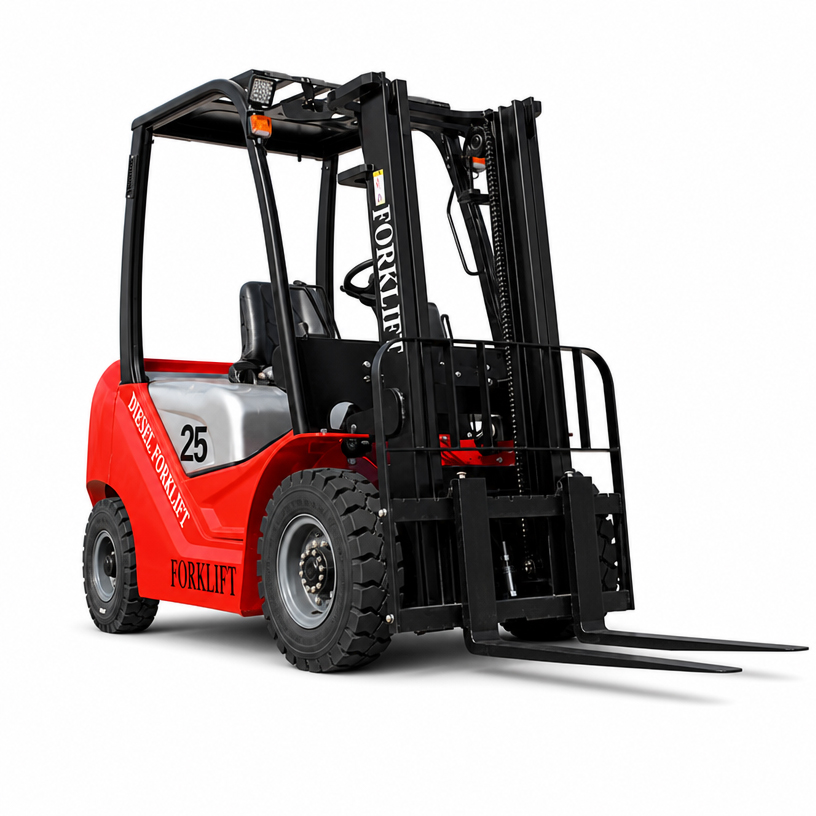

With an overall length of 2,595 mm without forks, a width of 1,160 mm, and an outside turning radius of 2,480 mm, the K25/KII25 provides essential dimensions for evaluating workplace access and maneuverability. Actual suitability depends on aisle width, load dimensions, floor conditions, and the operating environment.
To accommodate different load types, compatible attachments may be considered for the K25/KII25, subject to mounting and hydraulic compatibility.
Sideshifter: Moves the fork carriage laterally for more accurate pallet positioning.
Fork Positioner: Adjusts fork spacing hydraulically to handle loads of different widths.
Rotator: Turns compatible loads or containers for specific handling processes.
Paper Roll Clamp: Handles suitable paper rolls in paper, printing, and packaging operations.
Bale Clamp: Handles compatible compressed bales in selected textile, fiber, and recycling applications.
Carton Clamp: Grips suitable cartonized loads without conventional pallets.
Drum Clamp: Handles compatible industrial drums.
Push-Pull Attachment: Moves suitable unit loads on compatible slip sheets instead of conventional pallets.
Attachment availability and compatibility must be confirmed before ordering. An attachment may affect the forklift's residual capacity, load center, and operating dimensions. The final configuration should be assessed according to the intended load and application.
The LEAD 2.5 ton diesel forklift can be considered for manufacturing plants, warehouses, logistics facilities, building-material yards, and general industrial material handling operations. It supports the movement of suitable goods between storage areas, production lines, loading zones, and dispatch areas.
When choosing a forklift, buyers should consider rated capacity, lifting height, load dimensions, operating conditions, daily workload, and any special attachment requirements.
Looking for a 2.5 ton diesel forklift for your business? Contact LEAD to discuss the K25/KII25, technical specifications, optional attachments, and application requirements. Our team can help you review the appropriate configuration and provide a quotation for your material handling needs.
Contact LEAD for product details and a quote.
2.5-Ton Diesel Forklift – A Paradigm of Industrial Aesthetics and Intelligent Control
This 2.5-ton diesel forklift redefines industrial aesthetics with its minimalist design, featuring smooth lines and a robust silhouette. Its clean and elegant appearance seamlessly integrates into various operational environments, from warehousing logistics to production workshops, exuding exceptional quality.
Comfortable Operation, Smart Efficiency
Equipped with a new-generation steering wheel adjustment mechanism, it supports multi-dimensional flexible adjustments to accommodate drivers of different heights and operating habits, significantly reducing fatigue during long-hour operations. The adjustment structure undergoes rigorous durability testing to ensure consistent stability and reliability in high-frequency use, providing a solid foundation for precise control.
Engine Protection, Long-Lasting Durability
The high-roof large-diameter intake system adopts an innovative dust-proof design. Through physical isolation and aerodynamic optimization, it effectively filters over 98% of dust particles, minimizing engine cylinder wear and enabling sustained power in harsh environments such as mines and ports. This extends the service life by over 30%.
Vision Innovation, Safety Upgrade
The wide-view frame breaks through traditional structural limitations. By reducing the A-pillar blind zone and optimizing the mast layout, it expands the driver's field of vision by 40%. Even during high-position loading/unloading or narrow-lane turning, operators can clearly monitor cargo positions and surrounding dynamics, significantly reducing collision risks and enhancing operational safety.Intelligent Interaction, Precise ControlFeaturing a full-color LCD digital instrument panel, it real-time displays over 20 core data points, including speed, load, and fuel consumption, with an intuitive and user-friendly interface. The integrated intelligent fault diagnosis system automatically warns of potential issues, helping operators quickly locate and resolve anomalies, minimizing downtime and improving management efficiency.
Flexible Configuration, Economic Choice
An optional cast steel steering axle, manufactured with an integrated molding process, enhances impact resistance by 50% and extends the maintenance cycle to 1,200 hours, reducing annual maintenance costs by 25%. It supports customization with solid tires, explosion-proof devices, and other accessories to meet diverse needs in scenarios such as food processing and chemical warehousing.
2.5-Ton Diesel Forklift – Driving efficiency through design and defining reliability through technology, injecting intelligent industrial momentum into your material handling operations.
