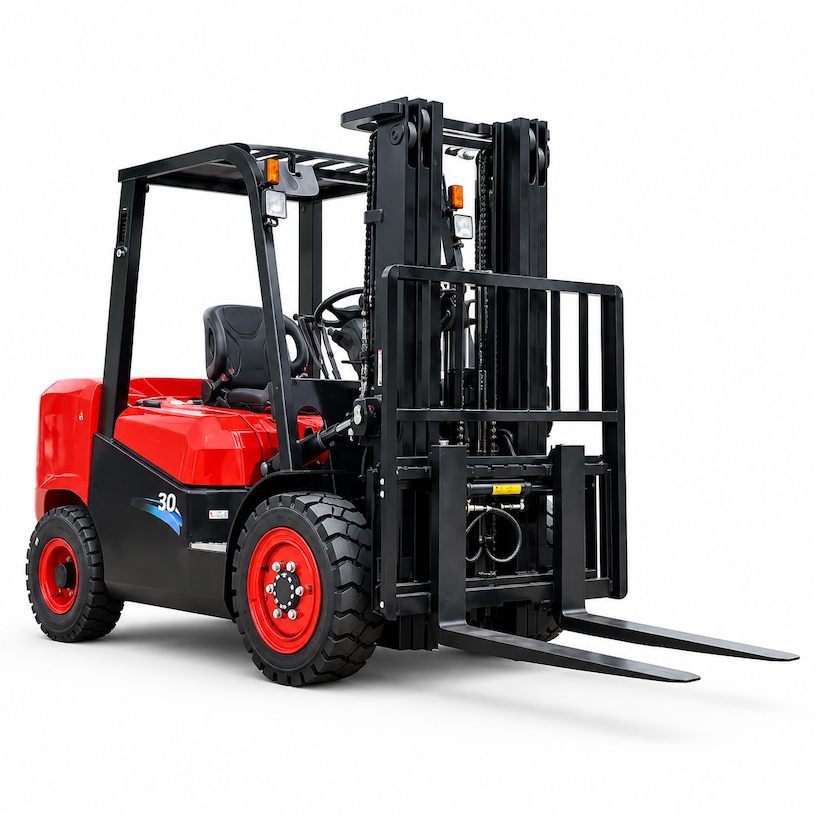

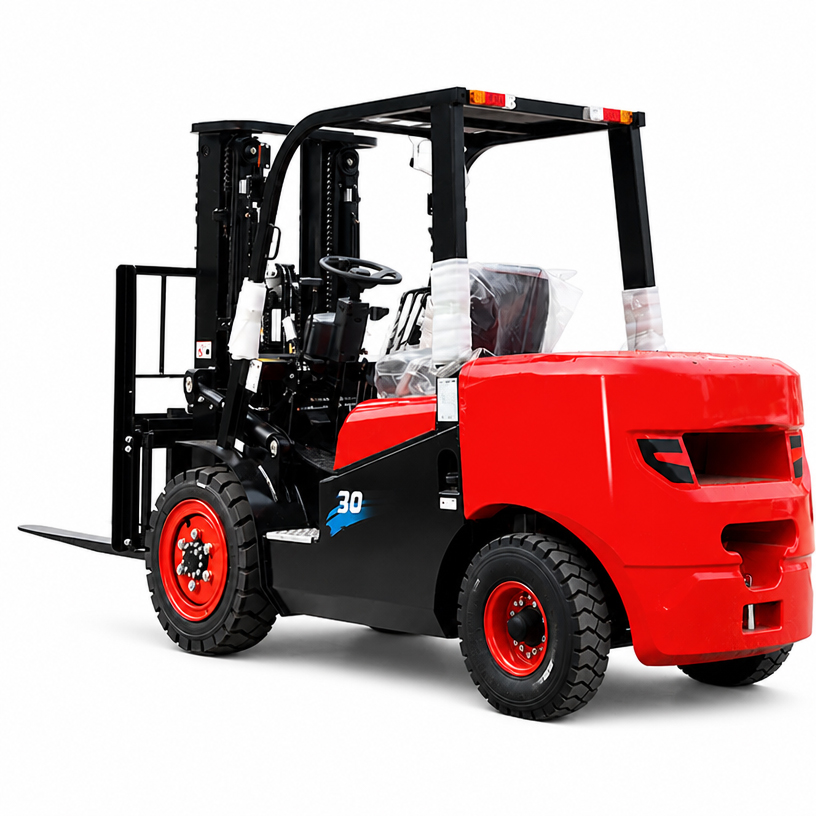

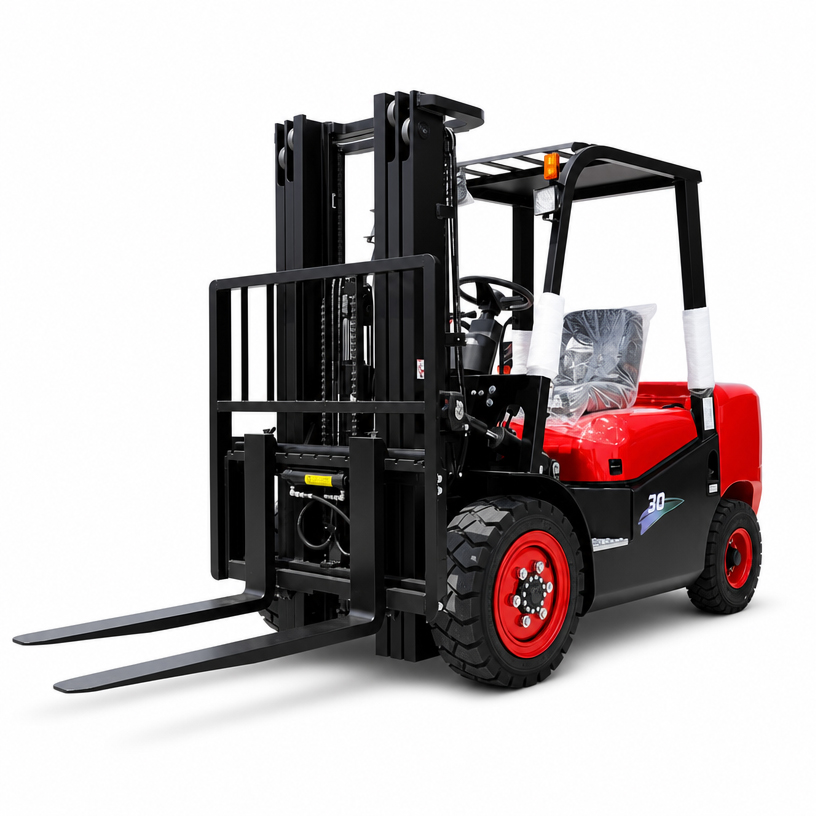

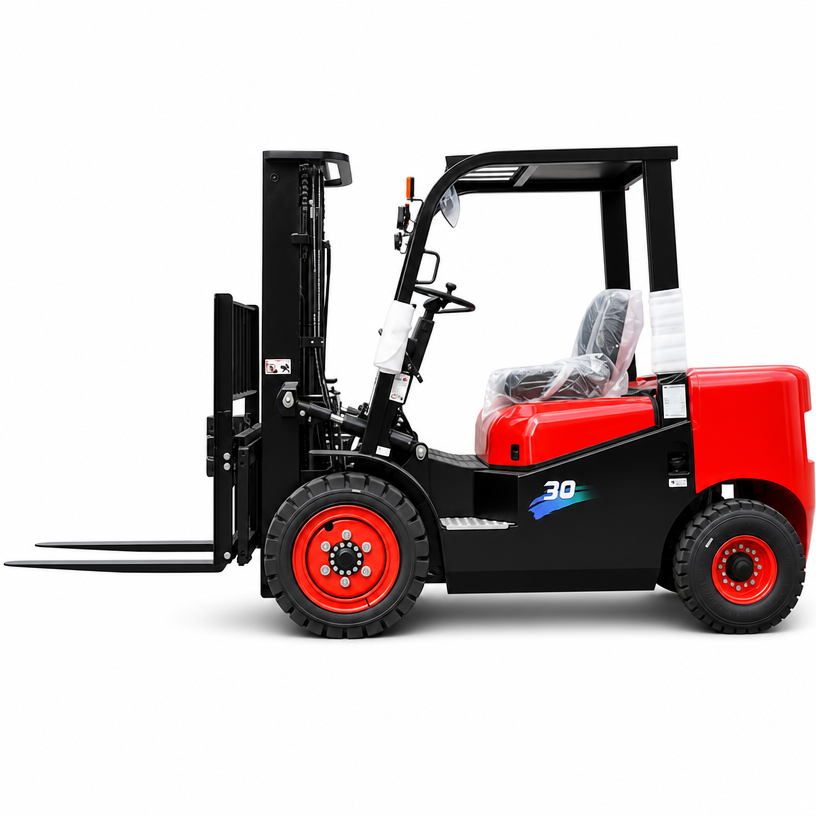

The LEAD K30/H30T 3 ton diesel forklift is designed for industrial material handling, pallet transportation and heavy-duty lifting operations. With a rated load capacity of 3,000 kg and a 500 mm load center, this diesel counterbalance forklift is suitable for businesses that require dependable lifting performance and practical handling capabilities in daily operations.
The K30/H30T offers a maximum lift height of 3,000 mm and a free lift height of 140 mm. Its rated unladen travel speed is 19 km/h, while the laden lifting speed is 430 mm/s. The maximum gradeability under load is 18%, providing useful performance for suitable operating surfaces and working conditions.
The forklift features a 2,600 mm outside turning radius, an overall width of 1,240 mm and an overall length of 2,750 mm without forks. These dimensions help buyers evaluate the truck for their warehouse, factory, loading area or outdoor material handling environment. The mast has a lowered height of 2,070 mm and an extended height of 4,065 mm with the load backrest.
With a service weight of 4,100 kg, the LEAD 3 ton diesel forklift is built for routine material handling tasks in industrial and commercial settings. It can be considered for manufacturing facilities, logistics yards, distribution centers, building material operations and other applications that require the movement of heavy palletized loads.
The specification table lists the QC490BPG engine, with a rated output of 39 kW at 2,650 rpm, and a 60 L fuel tank. Please confirm the final engine configuration for the selected model before ordering.

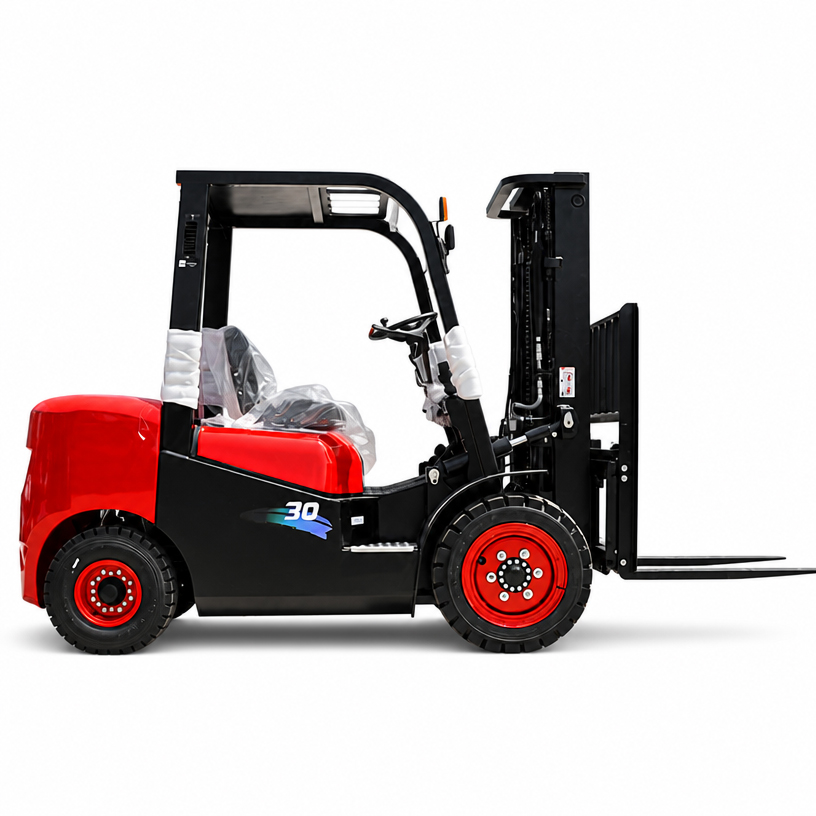

Different loads may require different handling equipment. Optional attachments, such as sideshifters, fork positioners, rotators, paper roll clamps, bale clamps and carton clamps, may be considered for specific applications. Attachment compatibility depends on the forklift configuration, mounting interface, hydraulic circuits, load characteristics and residual lifting capacity. Please provide your load dimensions and working requirements so the appropriate configuration can be checked.
When selecting a 3 ton diesel forklift, consider rated capacity, load center, lifting height, working aisle dimensions, ground conditions and the type of cargo being handled. The rated capacity may be affected by the load center, mast height and attachment configuration.
Contact LEAD to request product details, confirm the K30/H30T configuration and discuss suitable options for your material handling requirements. Our team can help you evaluate the specifications before placing an order.
3T Diesel Forklift – A Masterpiece of Eco-Design and Industrial Aesthetics
This 3-ton diesel forklift combines a sleek, elegant design with rigorous environmental standards, featuring smooth lines and a modern profile. It not only meets high-intensity operational demands but also adapts to global green industrial scenarios with low-emission, low-noise characteristics.
Expanded Vision, Uncompromised Safety
The wide-view frame incorporates optimized geometric structures to significantly reduce blind spots, allowing drivers to command a 360° clear view of cargo stacking and surroundings. Even when navigating multi-tiered shelves or operating at night, precise positioning is ensured, minimizing operational errors by 40% and enhancing warehouse and loading efficiency.
Intelligent Interface, Precise Control
Featuring a high-definition LCD digital dashboard, it real-time syncs critical data such as load weight, engine status, and fuel consumption. The icon-based interface design accelerates operation response by 30%. With integrated Bluetooth connectivity, data can be seamlessly synced to management systems, empowering enterprises with digitalized maintenance.
Ergonomic Comfort, Lasting Reliability
The new steering wheel adjustment mechanism supports 4-way electric adjustment (up/down, forward/backward), paired with an ergonomic seat for personalized fitting within 5 seconds, relieving lumbar fatigue. The adjustment components, crafted from aviation-grade aluminum alloy, offer 5x corrosion resistance, ensuring smooth operation through 10,000+ adjustments.
Engine Protection, Enhanced Efficiency
The high-roof large-diameter intake system is equipped with a dual-filtration system (pre-filter + fine filter), blocking PM2.5-level dust particles to achieve 95% cleaner air intake. This reduces carbon buildup, enhances power stability by 25%, extends maintenance intervals to 500 hours, and boosts overall service life to over 8 years.
Flexible Configuration, Cost-Effective Choice
An optional wear-resistant cast steering axle, using isothermal quenching technology, improves anti-deformation capacity by 60% while cutting annual maintenance costs to just 1/3 of traditional structures. It supports customization with EU CE-certified components and explosion-proof electrical systems, effortlessly addressing special scenarios like chemical and cold-chain logistics with one-stop solutions.
3T Diesel Forklift – Built on eco-foundations and driven by intelligence, it redefines the efficiency benchmark for heavy-duty material handling, creating sustainable value growth for industrial users worldwide.
