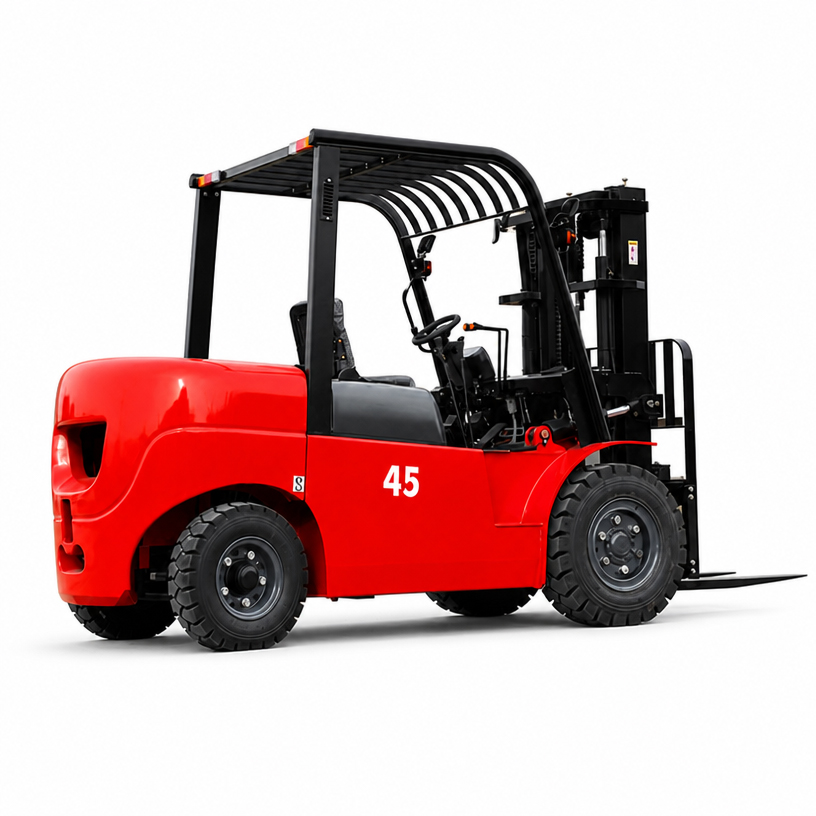

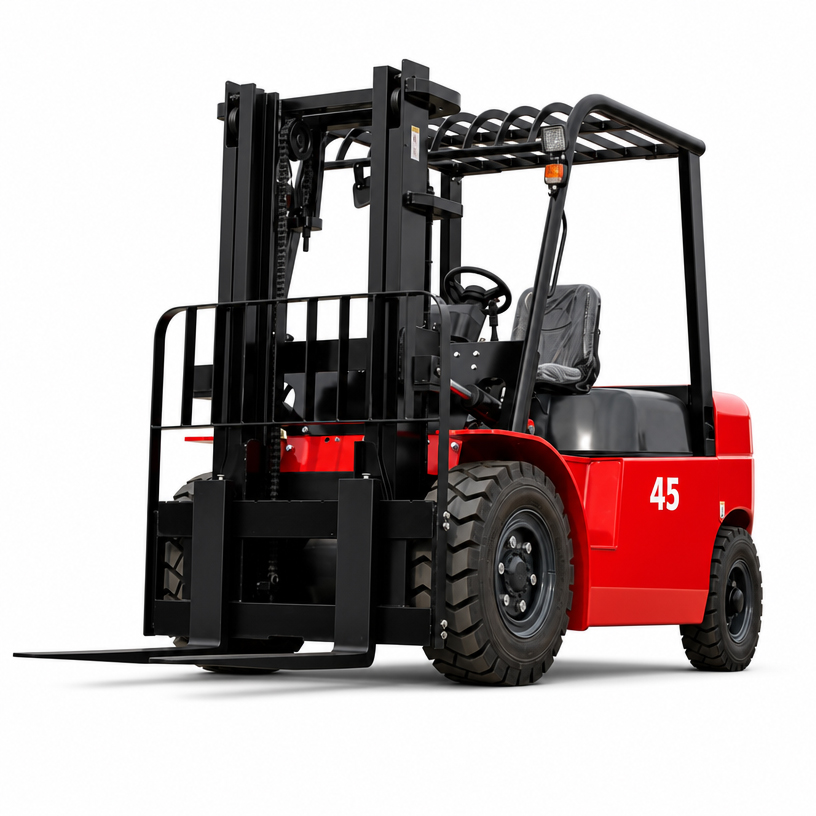

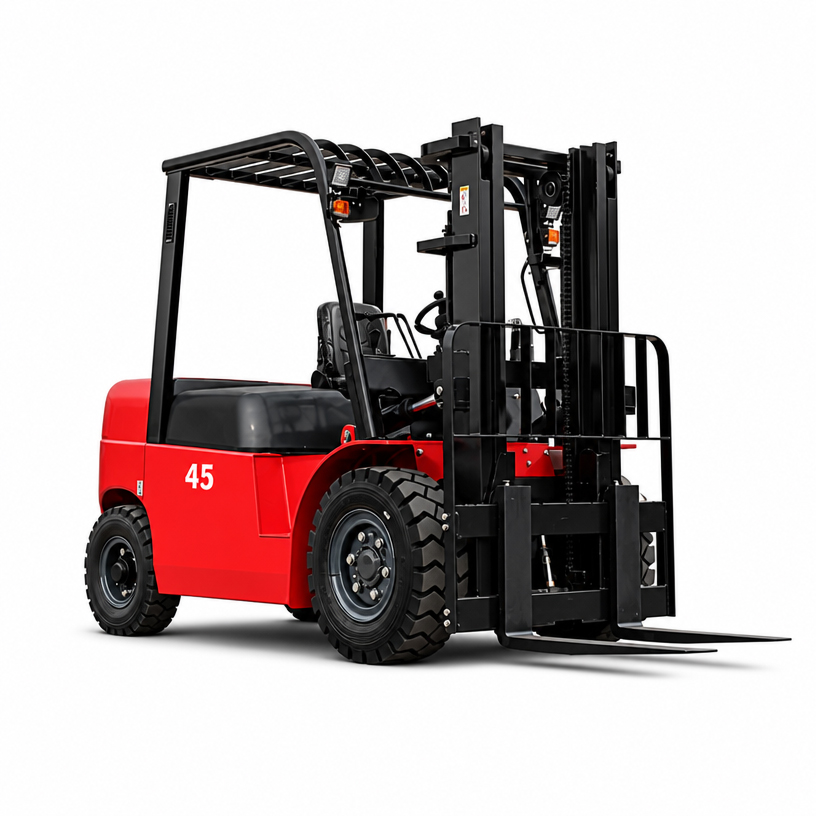

The LEAD H45 4.5 ton diesel forklift is designed for heavy-duty material handling in industrial and commercial environments. With a rated capacity of 4,500 kg and a 500 mm load center, this diesel counterbalance forklift is suitable for moving palletized goods, industrial materials and other heavy loads in factories, logistics yards, warehouses and distribution facilities.

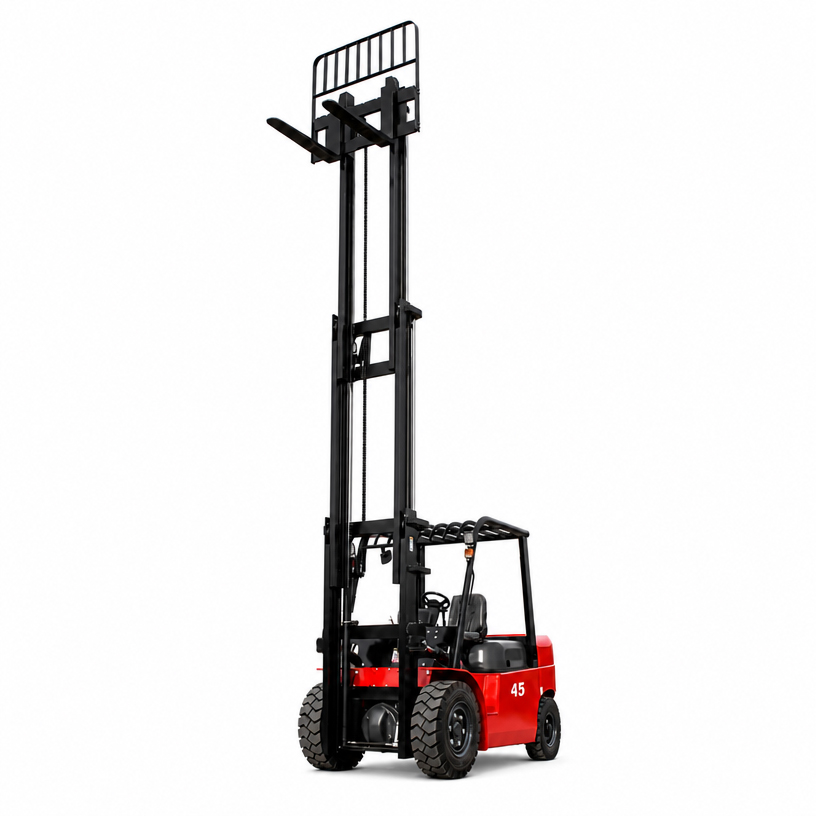

The H45 offers a maximum lift height of 3,000 mm and a free lift height of 150 mm. Its rated unladen travel speed is 19 km/h, and its laden lifting speed is 420 mm/s. The maximum gradeability under load is 20%, according to the supplied product specifications.

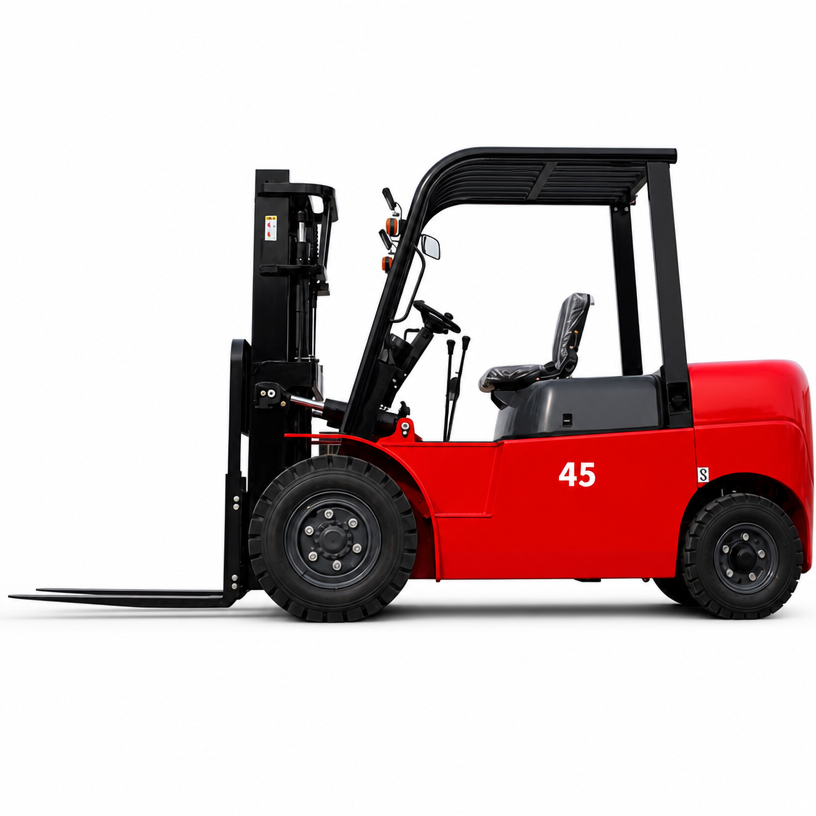

The forklift has an outside turning radius of 3,050 mm, an overall width of 1,480 mm and an overall length of 3,240 mm without forks. The mast lowered height is 2,275 mm, while the mast extended height with the load backrest is 4,310 mm. These dimensions help buyers evaluate whether the forklift is suitable for their working areas, loading zones and material handling routes.
According to the supplied specification table, the LEAD H45 is equipped with a 4D35G diesel engine manufactured by Zhejiang Xinchai. The listed rated output is 48 kW at 2,300 rpm, with maximum torque of 230 N·m at 1,600 rpm. The forklift also features a 90 L fuel tank and a service weight of 6,490 kg.
These specifications provide a reference for buyers evaluating a forklift for regular industrial operations. Actual suitability depends on the load, duty cycle, operating environment and maintenance requirements.
The H45 can be considered for manufacturing plants, logistics centers, building material yards and other workplaces that require the movement of heavy loads. Before selecting a forklift, buyers should assess load weight, load center, required lifting height, ground conditions, working aisle width and operating hours.
Depending on the application, optional attachments such as sideshifters, fork positioners, rotators, paper roll clamps, bale clamps and carton clamps may be considered. Compatibility must be confirmed according to the mounting interface, hydraulic circuit requirements, load characteristics and residual lifting capacity. Not every attachment is suitable for every forklift configuration.
Contact LEAD to request detailed specifications, confirm the H45 configuration and discuss suitable options for your material handling requirements. Our team can help you review the product details before placing an order.
4.5T Diesel Forklift: An Outstanding Choice for Industrial Material Handling
In the field of industrial material handling, efficiency and reliability are the eternal pursuits. Our 4.5T diesel forklift is precisely designed to meet these needs. It combines advanced technology with user - friendly design, making it an ideal partner for you to enhance the level of logistics operations.
I. Simple Appearance: A Blend of Aesthetics and Practicality
The overall appearance of the forklift follows a minimalist design concept, with smooth and natural lines. Without redundant decorations, it still exudes grandeur and beauty in its simplicity. This design not only endows the forklift with a unique visual charm, but more importantly, the simple appearance is easier to clean and maintain in daily use, reducing the accumulation of dirt and debris and keeping it in good working condition at all times.
II. Comfortable Operation: New Steering Wheel Adjustment Mechanism
It is equipped with a new steering wheel adjustment mechanism, which represents a significant upgrade in the operating experience. This mechanism supports multi - angle flexible adjustment. Whether the driver is tall or relatively petite, they can easily adjust the position and angle of the steering wheel according to their own needs. While improving operating comfort, the reliability of adjustment is also fully guaranteed. Through a large number of simulation tests and verification in actual working conditions, its structure is stable and can withstand long - term and high - frequency use, ensuring that each adjustment is accurate and in place, making the driving operation more handy.
III. High - efficiency Engine: High - Roof, Large - Diameter Intake System
The high - roof, large - diameter intake system is the "protector" of this forklift's engine. In the industrial environment, dust and impurities are often the enemies of the engine. However, through its unique design, this intake system can efficiently filter the outside air, greatly improving the cleanliness of the air entering the engine. This not only effectively reduces the wear and tear inside the engine, but also allows the engine's performance to be fully unleashed, with more stable and powerful power output. At the same time, it significantly extends the service life of the engine, reducing maintenance costs and downtime, providing a solid guarantee for the continuous and efficient operation of the enterprise.
IV. Expanded Vision: Wide - View Frame Design
The wide - view frame design represents a dual improvement in safety and operational convenience. By optimizing the frame structure and layout, it reduces blind spots, allowing the driver to observe the environment around the forklift and the status of the cargo more clearly and comprehensively during operation. Whether maneuvering through narrow warehouse aisles or working in complex loading and unloading areas, the driver can accurately grasp distances and positions, avoiding collisions and other accidents, greatly improving the safety and accuracy of operations, and thereby enhancing overall work efficiency.
V. Intelligent Interaction: LCD Digital Instrument and Friendly Interface
The reliable LCD digital instrument is the "intelligent assistant" for the driver. It can display all key parameters of the vehicle in real - time and accurately, such as driving speed, load weight, engine speed, fuel level, etc. Paired with a user - friendly interface, all information is clear at a glance, and the feedback of operation commands is rapid and accurate. The driver can quickly understand the vehicle's status through simple operations and make corresponding adjustments, achieving precise control over the vehicle and making each operation more efficient and safe.
VI. Economical and Practical: Optional Cast Steering Axle
Considering the different usage requirements and cost control of various customers, we offer an optional cast steering axle configuration. The cast steering axle is made of high - quality materials and advanced casting processes, featuring a sturdy structure and strong stability. During long - term use, its maintenance cost is relatively low, and the degree of wear is small, which can effectively reduce the frequency and cost of maintenance. For enterprises that pursue high cost - performance and long - term stable use, this is undoubtedly an attractive option.
This 4.5T diesel forklift demonstrates outstanding quality and performance in all aspects. Whether in large - scale logistics and warehousing centers or busy factory workshops, it can deliver excellent performance and help your business reach new heights.
