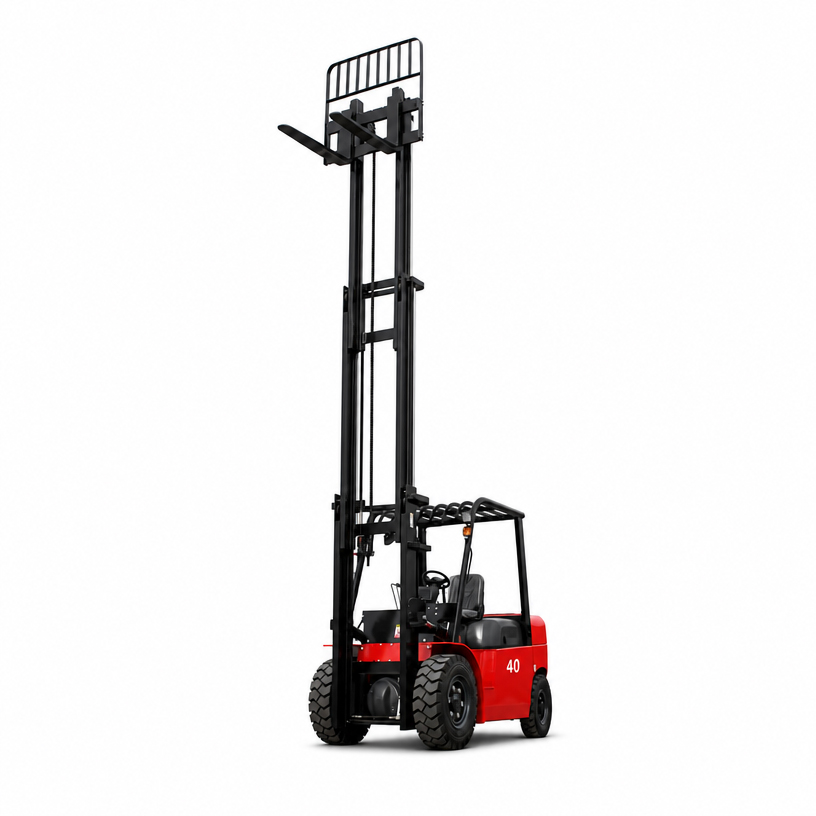

The LEAD H40 4 ton diesel forklift is designed for heavy-duty material handling in industrial and commercial environments. With a rated capacity of 4,000 kg and a 500 mm load center, this diesel counterbalance forklift is suitable for moving palletized goods, industrial materials and other heavy loads in factories, logistics yards, warehouses and distribution facilities.

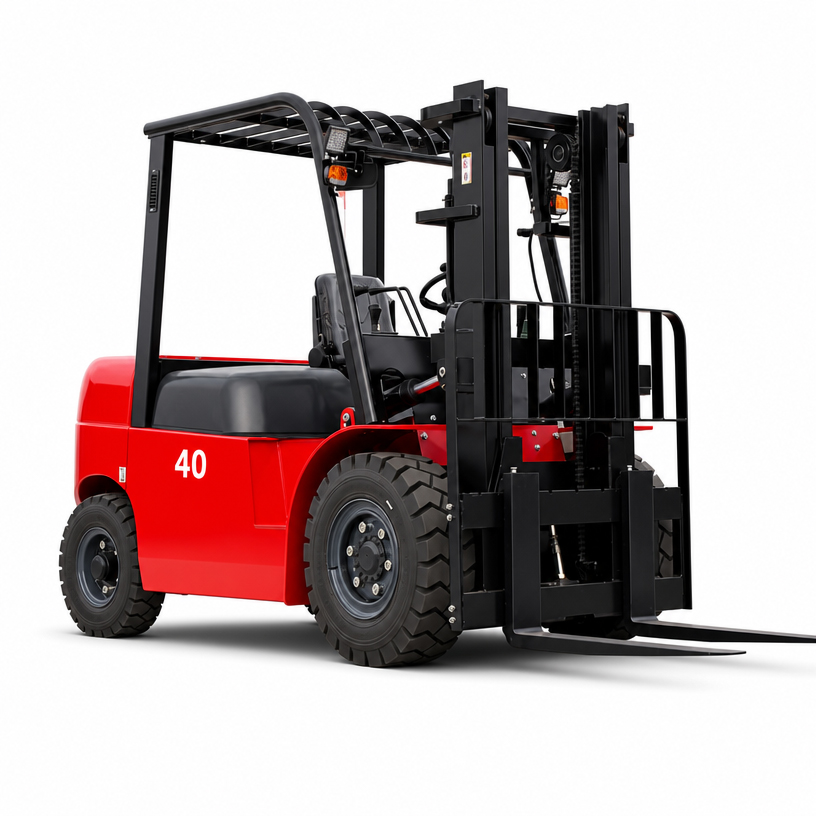

The H40 offers a maximum lift height of 3,000 mm and a free lift height of 150 mm. Its rated unladen travel speed is 18.5 km/h, with a laden lifting speed of 420 mm/s. The maximum gradeability under load is 20%, according to the supplied product specifications.

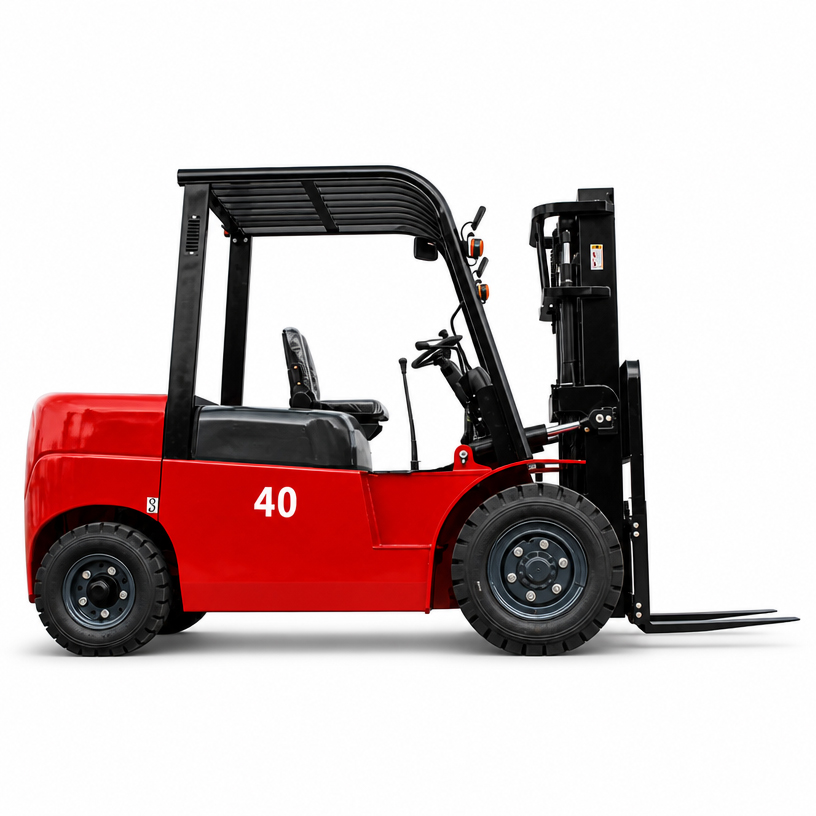

The forklift has an outside turning radius of 3,050 mm, an overall width of 1,480 mm and an overall length of 3,240 mm without forks. The mast lowered height is 2,275 mm, and the mast extended height with the load backrest is 4,310 mm. These dimensions help buyers assess the forklift's suitability for their operating space, loading areas and material handling routes.

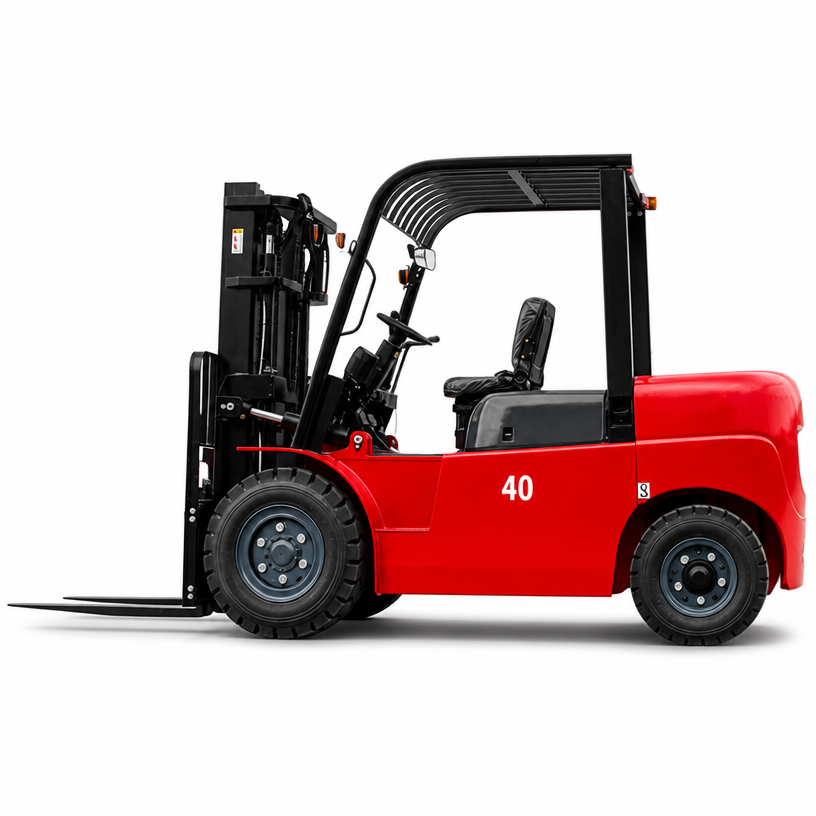

The LEAD H40 is equipped with a 4D35G diesel engine manufactured by Zhejiang Xinchai, according to the supplied specification table. The listed rated output is 48 kW at 2,300 rpm, with maximum torque of 230 N·m at 1,600 rpm. The forklift also features a 90 L fuel tank and a listed service weight of 6,290 kg.
These specifications provide useful reference points when evaluating the forklift for regular industrial operations. Actual suitability depends on the load, operating environment, duty cycle and maintenance requirements.
The H40 can be considered for manufacturing plants, logistics centers, building material yards and other workplaces that need to handle loads up to its rated capacity under specified conditions. Before selecting a forklift, buyers should evaluate the load weight, load center, lifting height, ground conditions, working aisle width and operating hours.
Depending on the application, optional attachments such as sideshifters, fork positioners, rotators, paper roll clamps, bale clamps and carton clamps may be considered. Compatibility must be confirmed based on the mounting interface, hydraulic requirements, load characteristics and residual lifting capacity. Not every attachment is suitable for every forklift configuration.
Contact LEAD to request detailed specifications, confirm the H40 configuration and discuss suitable options for your material handling requirements. Our team can help you evaluate the product before placing an order.
Title: 4T Diesel Forklift - The New Flagship of Environmentally - Friendly and Efficient Industrial Material Handling
This 4T diesel forklift is a revolutionary product in the field of industrial material handling. It perfectly integrates environmental protection concepts with outstanding performance, providing your enterprise with an efficient and reliable material handling solution.
Environmental - friendly Pioneer, Aesthetic Model: The forklift follows a simple aesthetic design with smooth lines, looking elegant and beautiful. From the initial design stage, it strictly adheres to environmental protection standards, reducing exhaust emissions and minimizing the impact on the environment, thus contributing to green industrial production.
Superior Visibility, Robust and Durable: With the wide - view enhanced frame design, it not only greatly broadens the driver's field of vision, reducing blind spots during operation and enhancing work safety; but also strengthens the structure by using high - strength steel and undergoing special processing, resulting in higher durability and reliability. It can easily handle high - intensity and long - duration tasks.
Intake Optimization, Engine Renewal: The high - roof large - diameter channel intake system is a key design to ensure the efficient operation of the engine. This system can effectively filter impurities in the air, providing a clean and sufficient air intake for the engine, reducing internal engine wear, enabling the engine to fully exert its performance, and significantly extending its service life.
Powerful Motive Force, High - speed and Efficient Transportation: The professional enhanced high - speed transmission design is the core highlight of the forklift's power. The carefully - tuned transmission system can efficiently transfer the engine's power, making the forklift more powerful and faster. Whether it's starting with a heavy load or long - distance transportation, it can handle tasks easily, greatly improving work efficiency.
Exquisite Appearance, Sturdy Protection: The one - piece brushed hood not only gives the forklift an exquisite and beautiful appearance, enhancing the overall texture; but also provides reliable protection for key components such as the engine with its high - strength material properties, resisting external collisions and impacts and reducing the risk of component damage.
Tire Upgrade, Durable and Wear - resistant: Equipped with wide - base tires, compared with traditional tires, they have a larger contact area, stronger grip, and better stability. At the same time, the tire material has been specially improved, with higher wear - resistance. The service life is greatly extended, reducing the replacement frequency and lowering operating costs.
Intelligent Interaction, Precise Control: It is equipped with a reliable digital professional instrument panel and a user - friendly human - machine interface. The driver can obtain all key information of the vehicle in real - time through the instrument panel, such as speed, load, fuel consumption, etc., at a glance. Accurate information feedback helps the driver accurately control the vehicle's state and make timely adjustments to ensure smooth and safe operation.
Comfortable Operation, Flexible Adjustment: The new steering wheel adjustment mechanism fully considers ergonomic principles. The driver can easily adjust the steering wheel in multiple angles according to their own needs to find the most comfortable operating posture. The adjustment process is smooth, stable, and highly reliable, effectively relieving fatigue during long - time driving.
