1.6-ton Electric Riding-type Forklift Truck Product

Product Overview

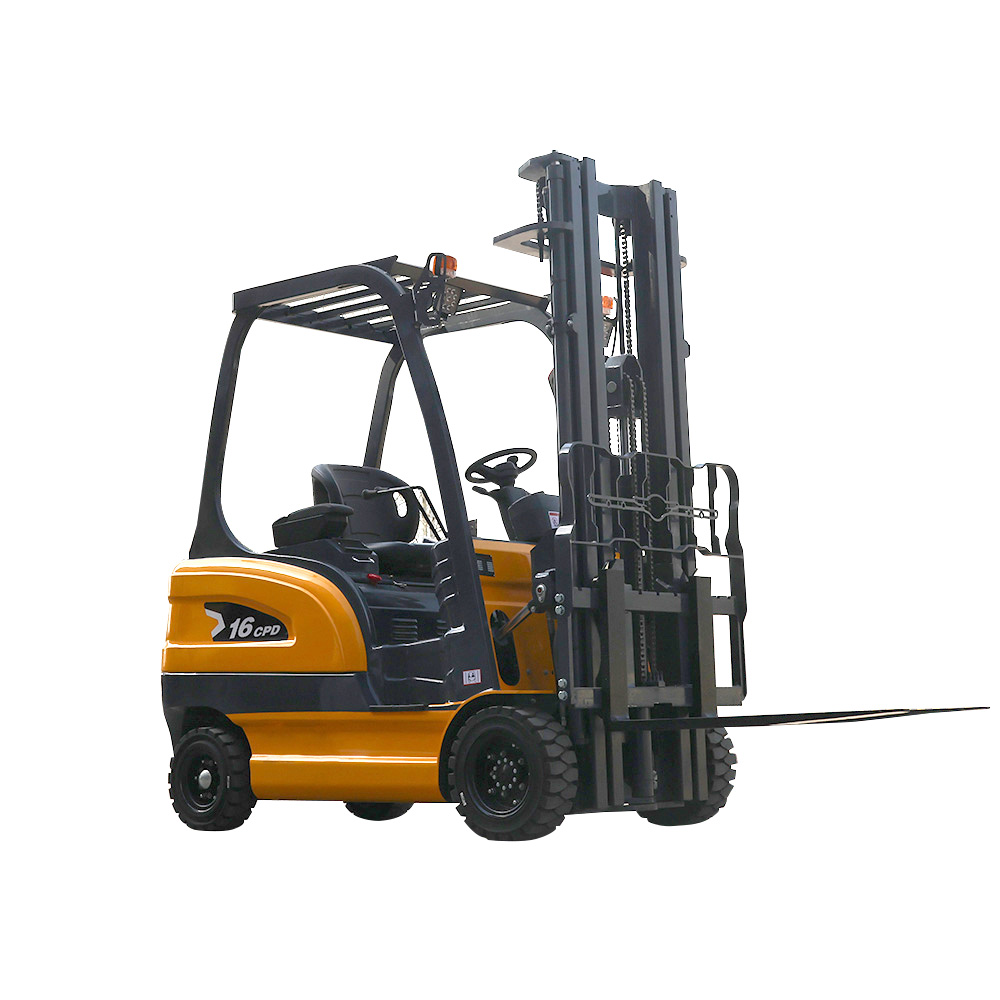

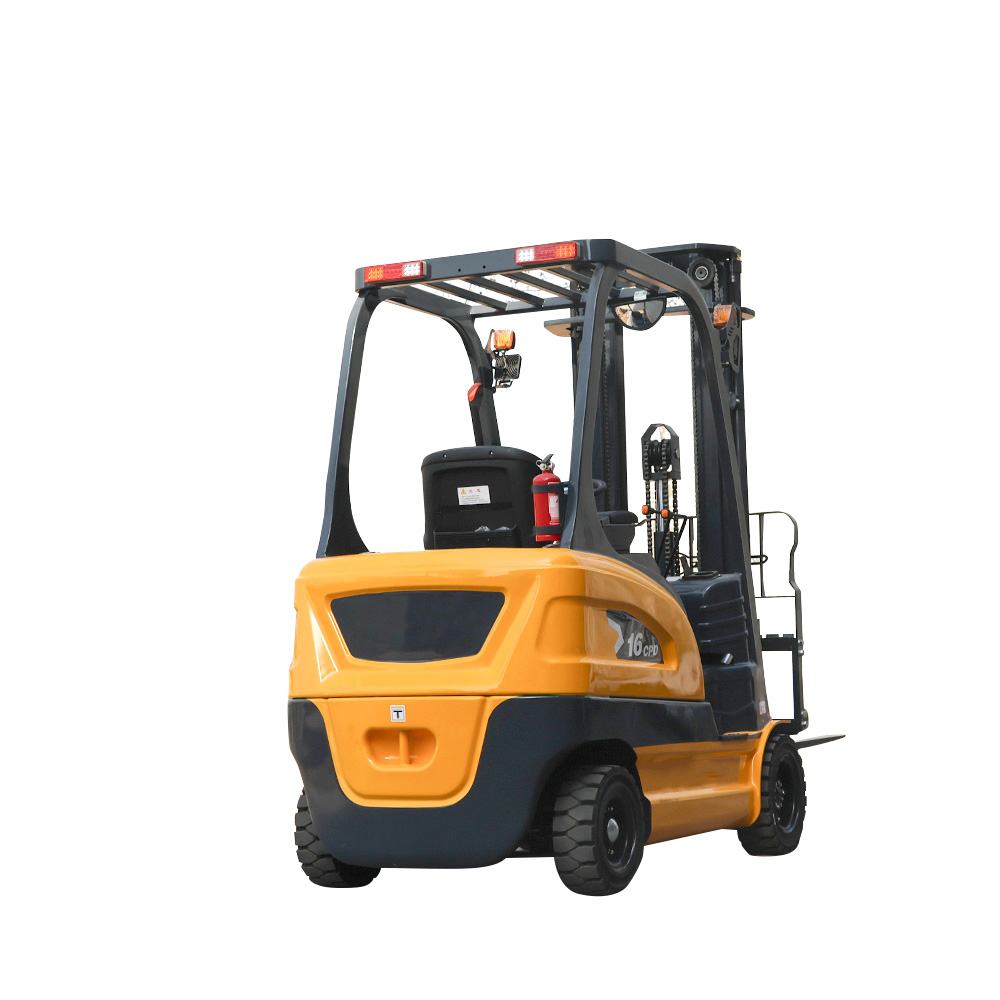

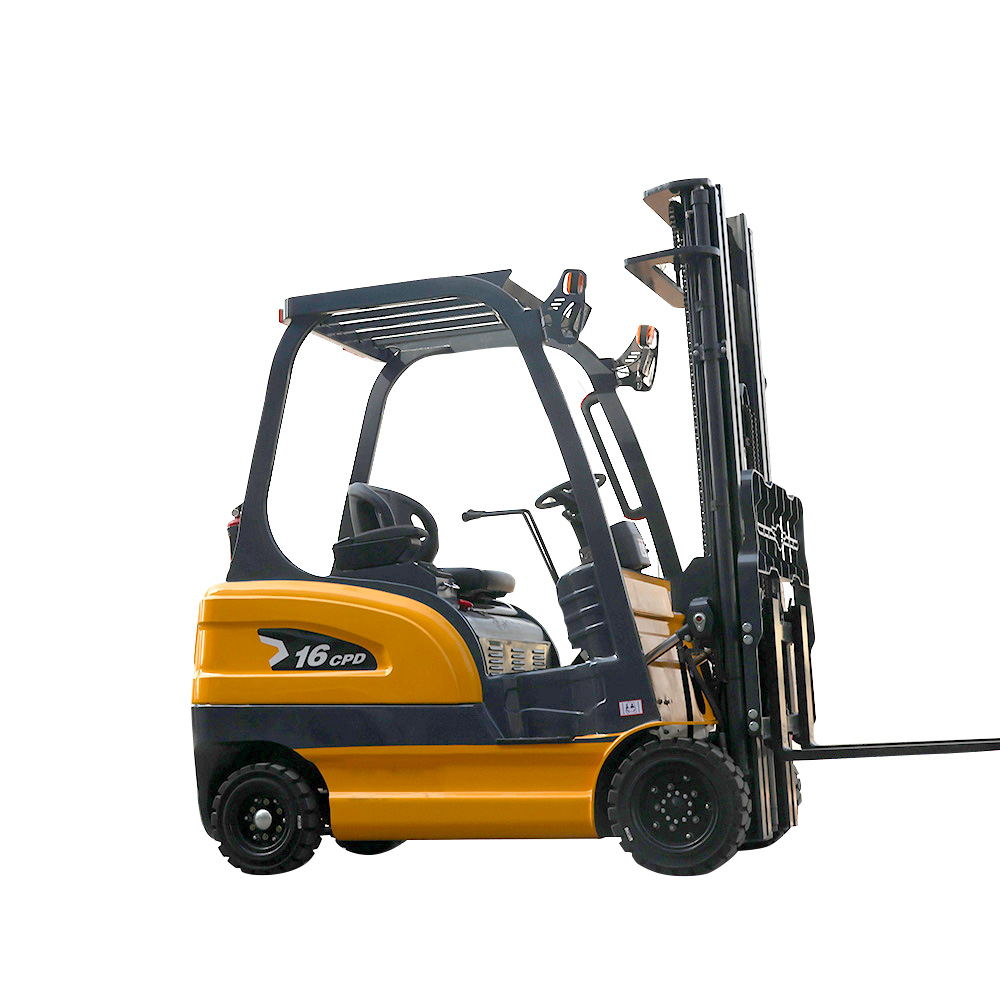

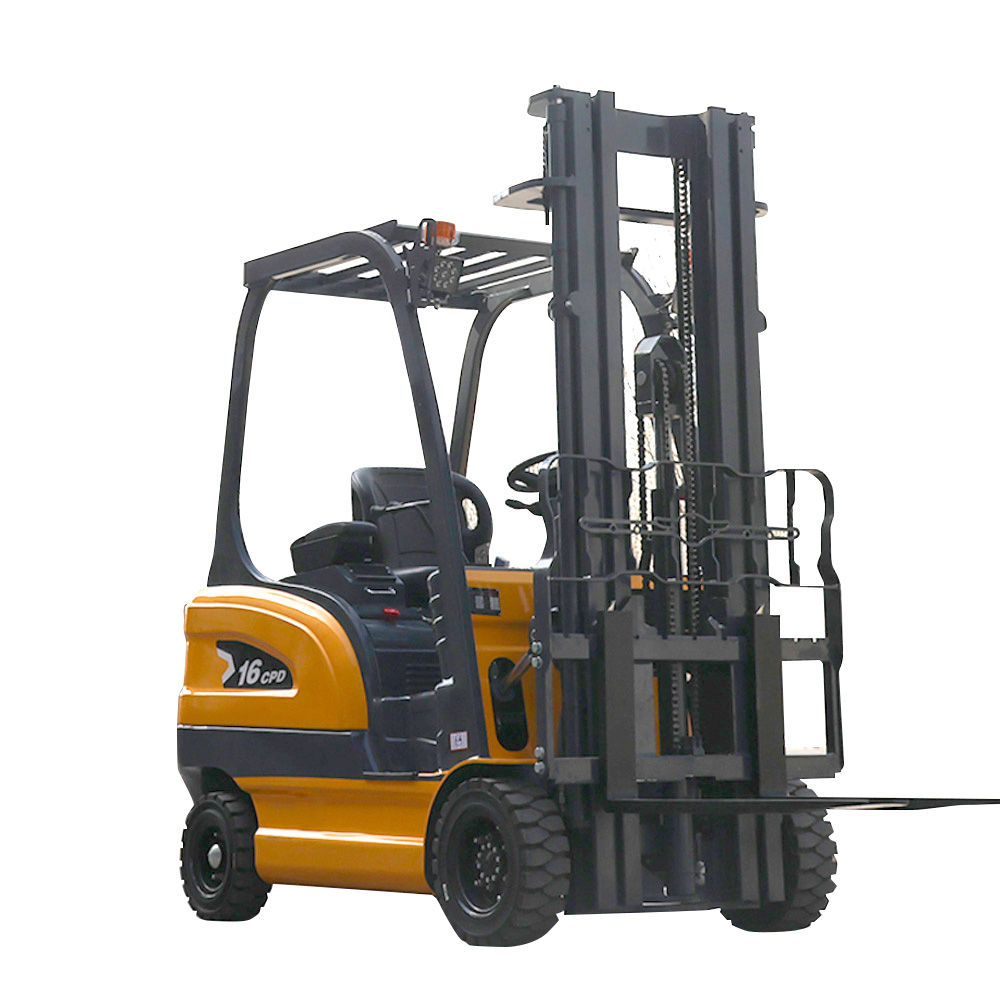

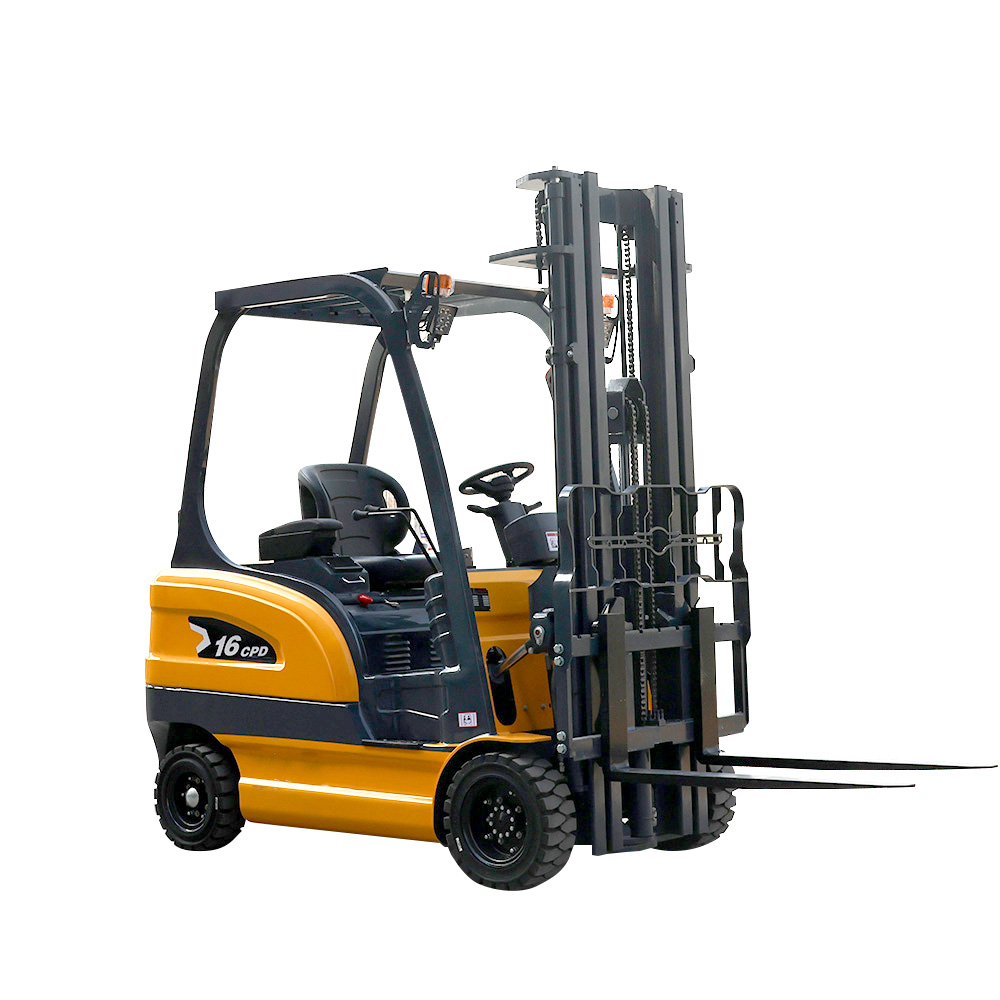

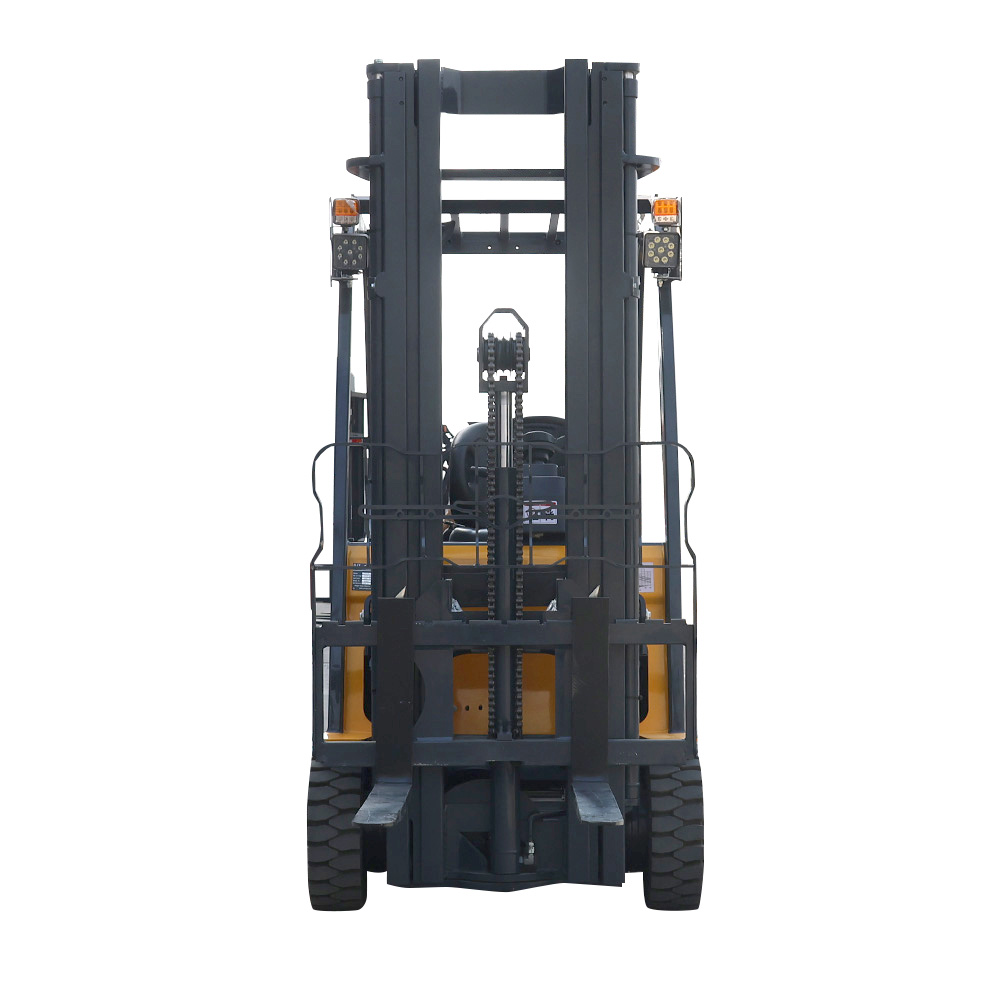

CPD16Z is a 1.6-ton electric forklift truck, specifically designed for efficient and precise logistics operations. With its electric power system, compact structure and intelligent functions, this forklift is widely used in high-demand scenarios such as pharmaceutical warehousing, supermarket logistics and electronic manufacturing, providing users with safe, flexible and economical material handling solutions.

Core Advantage

Safe and low noise

With an electric power system, it operates stably and without pollution. It completely eliminates the risks of fuel leakage or exhaust emissions. It is particularly suitable for places with strict environmental requirements, such as pharmaceutical storage facilities.

Extremely low noise design (< 60 decibels) creates a quiet working environment, avoiding noise interference and ensuring that operators can focus on their tasks.

Flexible and efficient

Compact size: The overall length of the vehicle is only 3305mm, the width is 1100mm, and the turning radius is 1985mm. It can turn flexibly in narrow passages (such as a 3360mm pallet passage), significantly enhancing the space utilization in supermarkets or warehouses.

Strong performance: Loaded walking speed is 10 km/h, empty load is 12 km/h; maximum climbing slope is 15%, easily handling slope operations.

Precise operation

Human-machine engineering optimization: Seat height 1080mm, guard frame height 2120mm, combined with adjustable frame (tilt angle 6°/10°), ensuring operational comfort and reducing fatigue from prolonged work.

High-precision control: The lifting speed ranges from 0.24m/s (full load) to 0.3m/s (empty load), and the lowering speed is 0.32 - 0.35m/s. Combined with a 35×100×1070mm fork, it enables the smooth handling of precision goods such as electronic components.

Intelligent Management

Communication-driven system: Equipped with 5kW drive motor and 5kW lifting motor, it has quick response and low energy consumption.

Remote monitoring support (optional): Through the intelligent control system, it enables speed adjustment, fault diagnosis and unified scheduling, optimizing the logistics process.

Technical Parameter Highlights

Load capacity: 1600kg (load center distance: 500mm), capable of meeting the requirements of medium-sized material handling.

Lifting frame performance: Standard configuration offers a maximum lifting height of 3000mm and a total height of 3960mm, suitable for various stacking scenarios.

Durable design: Solid tires (drive wheels 18×7-10, steering wheels 16×6-8), hydraulic + mechanical dual braking system, ensuring long-term stable operation.

Energy-saving economy: Battery-powered (voltage/capacity selectable), operating costs are over 30% lower than those of fuel-powered forklifts.

Applicable scenarios

Pharmaceutical storage: The products are free from pollution and have low noise levels, meeting GMP standards.

Supermarket logistics: Flexible channel design enhances shelf turnover efficiency.

Electronic manufacturing: Precise control ensures the safe handling of sensitive components.

Conclusion

The CPD16Z electric forklift is centered on safety, intelligence and efficiency. It perfectly combines performance with user experience and is an ideal choice for modern warehousing and logistics centers. If you need customized configurations or further technical consultation, please feel free to contact our professional team!
