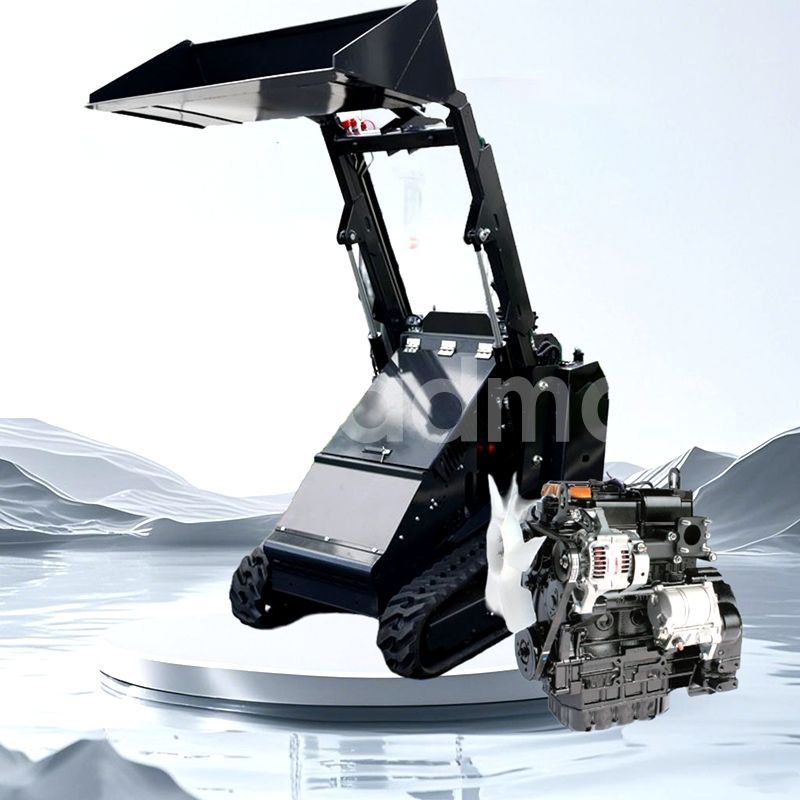

Lead LD-750 Skid Steer Loader: Efficient Fuel System and Full-Cycle Maintenance Guide

In modern construction, agriculture, and municipal engineering, skid steer loaders have become indispensable tools due to their flexibility and multi-functionality. As an industry leader, Lead’s LD-750 model stands out for its superior performance and low operational costs, particularly when equipped with the Yanmar 380 diesel engine, setting a benchmark in compact equipment. This article delves into its fuel system advantages and full-life-cycle maintenance insights.

I. Power Core: Yanmar 380 Diesel Engine

The LD-750 is standard-equipped with the Yanmar 380 three-cylinder diesel engine, offering these core benefits:

1. High Fuel Efficiency

Rated power of 18.4 kW meets heavy-duty demands, with fuel consumption reduced by 15% compared to similar models.

Matched with a 30L large-capacity fuel tank, it supports 8 hours of continuous operation per fill, minimizing downtime for refueling.

2. Environmental Emission Technology

Complies with Euro V/EPA dual emission standards, using natural aspiration and an efficient combustion system.

Particulate emissions reduced by 40%, suitable for urban eco-construction requirements.

3. Robust Output Performance

4.5 kN maximum breakout force, combined with a 0.15 m³ large-capacity bucket, increases single-load capacity by 20%.

450 kg rated operating capacity easily handles heavy materials like construction aggregates and agricultural supplies.

II. Compact Design and Exceptional Maneuverability

With an overall height of 1550mm and standard width of 970mm, the LD-750 excels in tight spaces:

500mm ultra-short tail design enables zero-radius turning, adapting to greenhouses, underground garages, and other complex scenarios.

180×72×45 track model with 1300mm ground contact length reduces ground pressure by 12%, enhancing wetland passability.

240mm ground clearance surpasses similar models, easily navigating 30° slopes and gravel terrains.

III. Full-Life-Cycle Maintenance Strategy

Scientific maintenance is key to prolonged efficient operation. The LD-750 offers these optimized maintenance solutions:

1. In-Depth Fuel System Care

Standard three-stage fuel filtration system; replace the fuel filter every 250 hours.

High-pressure common rail system requires ≥0# clean diesel to prevent injector damage from impurities.

2. Long-Term Power System Management

25 bar system pressure paired with fully synthetic lubricating oil; change oil every 500 hours.

Check coolant level every 100 hours; use -35℃ long-acting antifreeze to prevent freezing in low temperatures.

3. Intelligent Electrical System Monitoring

Maintenance-free battery design; inspect electrode corrosion quarterly and apply petroleum jelly for protection.

Waterproof wire connectors suit humid environments; conduct insulation resistance testing annually.

4. Rapid Attachment Replacement System

9-second attachment switching boosts efficiency; inspect quick-coupler seals during each replacement.

Bucket pins use high-strength alloy steel; lubricate every 50 hours.

IV. Application Scenarios and ROI

With a 2920mm maximum extension height and 1700mm unloading height, the LD-750 is widely used in:

Construction: Foundation backfilling, concrete handling, construction waste cleanup.

Agriculture: Silage loading, manure management, orchard deep tillage.

Municipal Maintenance: Snow removal, green belt trimming, road repair.

Its 1200 kg operating weight achieves an optimal load ratio, combined with a 1000-hour ultra-long maintenance cycle, reducing 3-year comprehensive costs by 25% compared to similar models. It’s a smart choice for small and medium construction enterprises.

The Lead LD-750 skid steer loader, powered by Yanmar and integrated with compact design and intelligent maintenance, delivers efficient and reliable multi-scenario solutions. Whether for eco-focused municipal projects or extreme-condition construction, the LD-750 helps users create greater value with exceptional performance.
