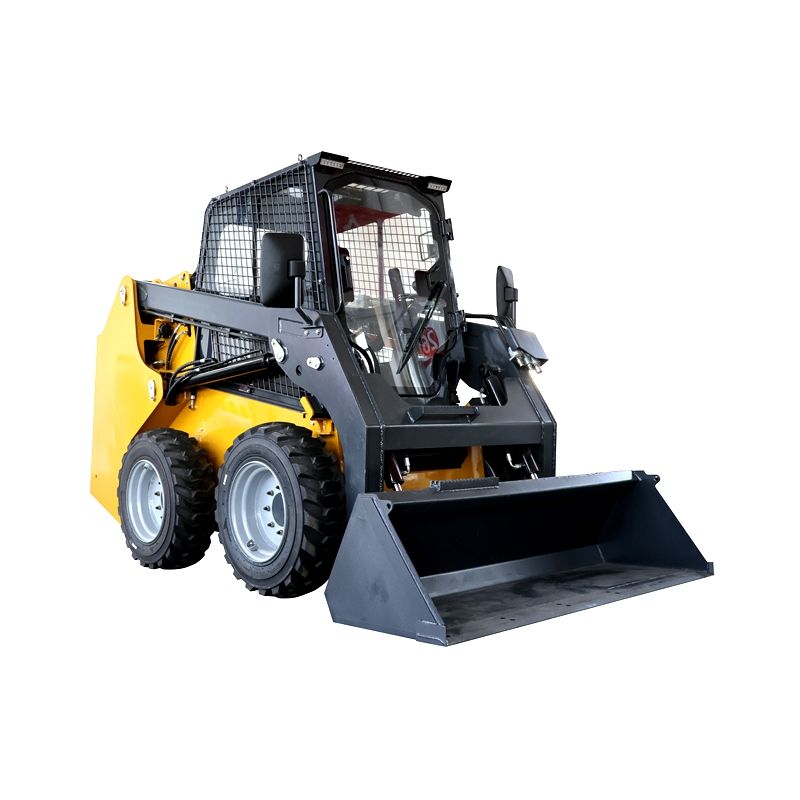

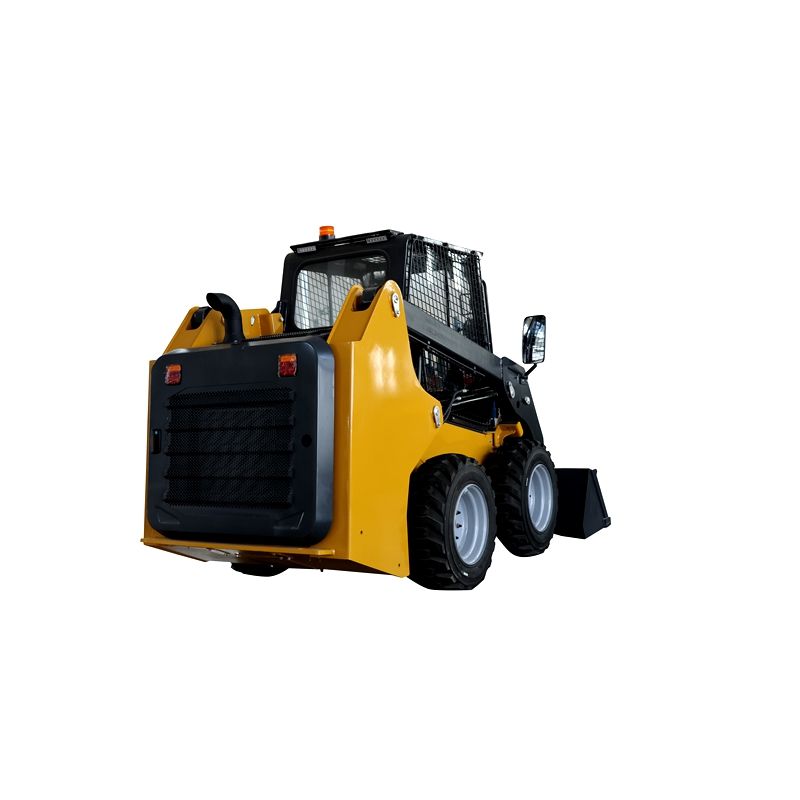

LD-S55 Safe And Durable Skid Steer Loader

I. Power Core: Cummins 4-Cylinder China Stage III Engine

Powered by a Cummins 4-cylinder naturally aspirated engine with a rated power of 36.8kW, delivering industrial-grade reliability for heavy-duty operations:

Emission Standard: Compliant with China Stage III environmental requirements, suitable for regulatory needs in municipal, agricultural, and other domestic scenarios.

Power Output: 4-cylinder performance provides a maximum breakout force ≥25 kN, effortlessly handling heavy materials like gravel and concrete.

Durability: Naturally aspirated design reduces complex maintenance, adapting to harsh conditions (dust, moisture), with annual average downtime < 8 hours.

II. Heavy-Duty Performance: 890KG Class Benchmark

Load Capacity:

Rated load 890KG, tipping load ≥1780KG, meeting single-trip handling needs for heavy materials in mining, ports, etc.

0.4 m³ large-capacity bucket, combined with a 27° ground tipping angle + 43° high-position tipping angle, improves material handling efficiency by 50%.

Operating Height:

Maximum working height 3790mm, discharge height 2384mm (±5% tolerance), suitable for direct unloading into truck carriages over 3 meters.

Bucket pivot pin horizontal length 2700mm, maximum bottom horizontal reach 2846mm, ensuring high-position unloading accuracy.

III. Dimensions and Maneuverability: Balance of Power and Agility

Body Design:

Vehicle width 1640mm, tail length 1160mm, turning radius ≤3m, navigable through 2m-wide alleys, suitable for medium construction sites and tight spaces.

Ground clearance 185mm (±2%), paired with 10-10.5 耐磨轮胎 (10-10.5 heavy-duty tires), climbing capacity ≥25°, ensuring smooth passage on muddy and gravel roads.

Mobility Efficiency: 0-12km/h adjustable travel speed, no trailer needed for short-distance transfers, saving 50% commute time.

IV. Hydraulic System and Control: Precise Power Management

Hydraulic System:

21 MPa constant pressure + 55L/min high flow output, bucket lifting speed increased by 30%, compatible with heavy-duty attachments like breaker hammers and wood grapples.

Optional pilot-controlled handles reduce operating force by 40%, decreasing fatigue by 25% during continuous operation.

Fuel Economy: 80L large-capacity fuel tank, idling fuel consumption ≤2.5L/h, supporting 8 hours of continuous operation on a full tank, with 10% lower comprehensive fuel consumption than similar products.

V. Structural Safety: Industrial-Grade Durability Assurance

Body Strength:

Operating mass 2880kg (±3%), all-steel frame + thickened boom, impact resistance doubled, 3-year structural cracking rate < 0.5%.

Cab top height 2095mm (±5%), standard ROPS (Rollover Protective Structure) compliant with ISO 3471 safety certification.

Intelligent Protection: Integrated real-time monitoring of oil pressure and temperature, automatic power cut-off for overloads, reducing misoperation damage risks.

VI. Application Scenarios: Full-Industry Heavy-Duty Solutions

Mining: Gravel loading, slag transportation, with a 0.4m³ bucket capable of handling 800 tons daily.

Port Logistics: Container unloading, heavy machinery parts handling, 2384mm discharge height suitable for standard containers.

Large Infrastructure: Concrete pouring, subgrade filling and leveling, 25 kN breakout force suitable for foundation construction.

Heavy Agriculture: Silage stacking, large agricultural machinery towing, optional fork attachments for expanded functionality.

VII. Transportation Adaptability: Global Worry-Free Experience

Nude Machine Dimensions (L×W×H): 3450×1640×2095mm, sea transport reinforcement reduces damage to 0.3%.
